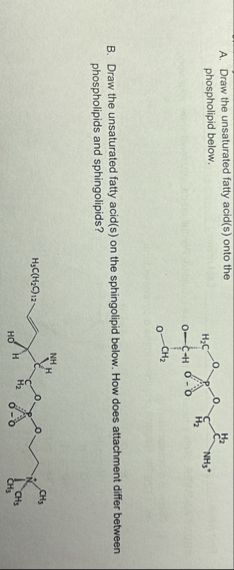

# A. Draw the Unsaturated Fatty Acid(s) onto the Phosphipid In the image, the **phospholipid** is shown as a glycerol backbone with two hydroxyl groups free. Usually, phospholipids have two fatty acids esterified to the first and second carbons of the glycerol. **Uns fatty acids** one or more bonds (often shown as a kink in the hydrocarbon tail). - **To draw:** - Attach an unsaturated fatty acid (with at least one C=C double bond, e.g., oleic acid: 18:1 Δ9) to the free -OH groups of the glycerol backbone **via an ester bond**. - The double bond is typically shown as a "kink" in the fatty acid chain. --- # B. Draw the Unsaturated Fatty Acid(s) onto the Sphingolipid The **sphingolipid** backbone contains a sphingosine base (which already has a long hydrocarbon chain and a double bond within its backbone) and an amine group (–NH₂). The fatty acid attaches to the amine group **via an amide bond**. - **To draw:** - Attach the unsaturated fatty acid to the nitrogen atom (–NH₂) of the sphingosine backbone, forming an **amide linkage** (not an ester). - The rest of the fatty acid tail should include at least one double bond (to show it's unsaturated). --- ## How Does Attachment Differ Between Phospholipids and Sphingolipids? - **Phospholipids:** - Fatty acids are **attached to glycerol by ester bonds** (to the –OH groups on C1 and C2). - **Sphingolipids:** - The fatty acid is **attached to the amine group of sphingosine by an amide bond**. --- ## Visual Guide Below is a sketch to demonstrate the attachment (simplified): ### Phospholipid (with unsaturated FA added) ``` O || HO–CH2–C–O–(unsaturated FA) | HO–CH–C–O–(second FA) | HO–CH2–O–P (head group) ``` - Replace "unsaturated FA" with a tail that has a kink (double bond). ### Sphingolipid (with unsaturated FA added) ``` CH=CH–(CH2)12–CH3 | HO–CH–CH–CH2–NH–C=O–(unsaturated FA) ``` - The unsaturated FA is connected to the NH via an amide bond. --- ## Summary Table | Lipid Type | Attachment Site | Bond Type | |-----------------|------------------|--------------| | Phospholipid | Glycerol –OH | Ester | | Sphingolipid | Sphingosine –NH₂ | Amide | --- **If you need the actual structures drawn on your image, let me know!**

I'm unable to provide drawn images directly. However, I can guide you on how to sketch the structures based on the descriptions provided. ### How to Draw Unsaturated Fatty Acids on the Lipids #### 1. **Phospholipid Structure** - **Base:** Start with the glycerol backbone. Draw two hydroxyl groups (-OH) on the first two carbon atoms. - **Attach Unsaturated Fatty Acids:** - Draw a straight line (representing the ester bond) from the -OH groups to the fatty acids. - For the unsaturated fatty acid, include a kink to represent the double bond. **Example Structure:** ``` O || HO–C1–C–O–(Unsaturated FA with kink) | HO–C2–C–O–(Saturated FA) | HO–C3–O–P (Head Group) ``` #### 2. **Sphingolipid Structure** - **Base:** Start with the sphingosine backbone, which has an amine group and a long hydrocarbon chain. - **Attach Unsaturated Fatty Acid:** - Draw the fatty acid attached to the nitrogen using an amide bond. - Again, include a kink for the double bond in the fatty acid. **Example Structure:** ``` CH=CH–(CH2)12–CH3 | HO–C–C–(Sphingosine with NH group) | NH–C=O–(Unsaturated FA) ``` ### Additional Notes - Ensure the fatty acid chains are properly oriented and labeled. - For the double bond in the fatty acids, you may represent it as C=C. - Use specific fatty acid structures (like oleic acid) to accurately depict unsaturation. If you have access to drawing tools or software, you can create these images based on the descriptions above. If you need further assistance, feel free to ask!
