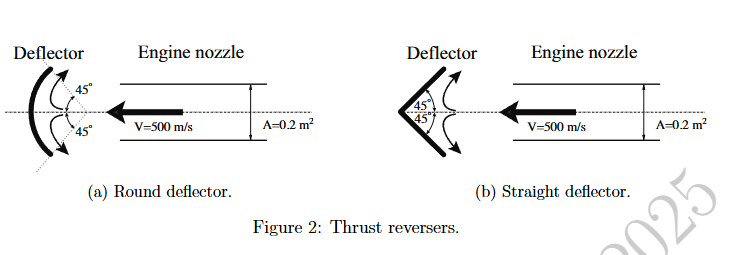

# Explanation of Thrust Reversers (Figure 2) This figure shows two types of **thrust reversers** used in jet engines to redirect the exhaust flow, helping slow down an aircraft after landing. --- ## Components - **Engine nozzle:** Where the high-speed exhaust gas exits, with an area \(A = 0.2\,m^2\), and velocity \(V = 500\,m/s\). - **Deflector:** Structure placed behind the nozzle to redirect the exhaust flow. --- ## (a) Round Deflector - **Shape:** Curved, round surface. - **Angle:** The deflector redirects the exhaust flow by **45°** to both sides. - **Function:** The curved surface smoothly redirects the jet exhaust sideways at an angle. - **Effect:** Results in the exhaust being split and redirected at 45° angles from the original axis. --- ## (b) Straight Deflector - **Shape:** Angular, straight surfaces forming a V-shape. - **Angle:** Also redirects the flow by **45°**. - **Function:** The straight faces bounce the exhaust off at a sharp angle. - **Effect:** The exhaust is reflected more abruptly, but still at 45° relative to the original direction. --- ## Purpose of Thrust Reversers - **Main Goal:** Change the direction of the jet exhaust to produce a force in the opposite direction of travel, helping to slow the aircraft down rapidly after landing. - **How it works:** By redirecting the exhaust, the engine produces a backward force (reverse thrust), reducing the aircraft's speed. --- ## Key Differences | Round Deflector | Straight Deflector | |-----------------------------------|-----------------------------------| | Smooth, curved redirection | Sharp, angular redirection | | Likely smoother flow | May induce more turbulence | | Both redirect by 45° | Both redirect by 45° | --- **Summary:** Both deflectors serve the same purpose—reversing thrust by redirecting the engine exhaust at 45° angles. The main difference is in the shape, which can affect the smoothness and efficiency of the exhaust redirection. Let me know if you want to see how to calculate the reverse thrust produced by each setup!
