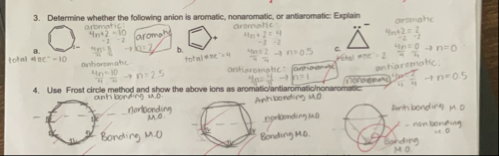

Certainly! Let’s break down **how to determine if an anion is aromatic, nonaromatic, or antiaromatic** using the examples in your image. --- ## **Key Concepts** ### **Aromatic** - **Planar and cyclic** (ring structure) - **Fully conjugated** (every atom in the ring has a p orbital) - **Hückel’s rule:** Has \( 4n+2 \) π electrons (where \( n \) is an integer: , 1, 2, ...) - **Very stable** ### **Antiaromatic** - **Planar and cyclic** - **Fully conjugated** - **Has \( 4n \) π electrons** - **Very unstable** ### **Nonaromatic** - **Not planar, not fully conjugated, or not cyclic** - **Does not fit the criteria for aromatic or antiaromatic** --- ## **Step-by-Step with Your Examples** ### **a. Cyclopentadienyl Anion (\( C_5H_5^- \))** **Structure:** - 5-membered ring, one negative charge (adds 2 electrons) **π Electrons:** - Each double bond = 2 π electrons × 2 = 4 - Lone pair from the anion = 2 - **Total = 6 π electrons** **Analysis:** - Planar, cyclic, fully conjugated. - \( 6 = 4n+2 \) (\( n=1 \)) - **Aromatic** --- ### **b. Cycloheptatrienyl Anion (\( C_7H_7^- \))** **Structure:** - 7-membered ring, three double bonds, one negative charge **π Electrons:** - 3 double bonds = 6 - Lone pair from anion = 2 - **Total = 8 π electrons** **Analysis:** - Planar, cyclic, fully conjugated. - \( 8 = 4n \) (\( n=2 \)) - **Antiaromatic** --- ### **c. Cyclopropenyl Anion (\( C_3H_3^- \))** **Structure:** - 3-membered ring, one double bond, one negative charge **π Electrons:** - Double bond = 2 - Lone pair from anion = 2 - **Total = 4 π electrons** **Analysis:** - Planar, cyclic, fully conjugated. - \( 4 = 4n \) (\( n=1 \)) - **Antiaromatic** --- ### **d. Cyclobutadiene Anion (\( C_4H_4^- \))** **Structure:** - 4-membered ring, two double bonds, one negative charge **π Electrons:** - 2 double bonds = 4 - Lone pair from anion = 2 - **Total = 6 π electrons** **Analysis:** - Planar, cyclic, fully conjugated. - \( 6 = 4n+2 \) (\( n=1 \)) - **Aromatic** --- ## **Summary Table** | Structure | π Electrons | Aromatic/Antiaromatic/Nonaromatic | Reasoning | |--------------------------|-------------|------------------------------------|------------------------------------| | Cyclopentadienyl anion | 6 | Aromatic | 4n+2 (n=1), planar, conjugated | | Cycloheptatrienyl anion | 8 | Antiaromatic | 4n (n=2), planar, conjugated | | Cyclopropenyl anion | 4 | Antiaromatic | 4n (n=1), planar, conjugated | | Cyclobutadiene anion | 6 | Aromatic | 4n+2 (n=1), planar, conjugated | --- ## **How to Analyze a New Anion** 1. **Count π electrons** (double bonds + lone pairs from anion). 2. **Check planarity and conjugation**. 3. **Apply Hückel’s rule**: - \( 4n+2 \) → Aromatic - \( 4n \) → Antiaromatic - Otherwise → Nonaromatic --- Let me know if you want to analyze a specific molecule in detail or have more questions!

# Ohm's Law in Electrical Engineering Ohm's Law states the relationship between voltage (\(V\)), current (\(I\)), and resistance (\(R\)) in an electrical circuit. It is defined by the formula: \[ V = I \times R \] where: - \(V\) is the voltage (in volts, V) - \(I\) is the current (in amperes, A) - \(R\) is the resistance (in ohms, Ω) ## Given Values - Resistance (\(R\)): \(100 \, \Omega\) - Current (\(I\)): \(2.5 \, A\) ## Calculation Using Ohm's Law: \[ V = I \times R \] Substituting the given values: \[ V = 2.5 \, A \times 100 \, \Omega \] \[ V = 250 \, V \] ## Conclusion The voltage across the resistor is **250 volts**.
