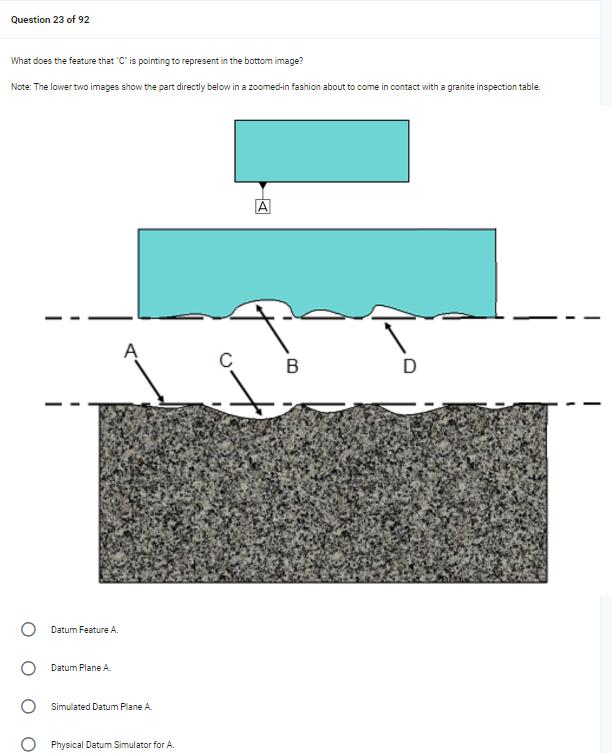

## Step-by-Step Solution ### **Question Recap** You are asked what feature 'C' is pointing to in the bottom image, where a part is about to come into contact with a granite inspection table. The options are: 1. Datum Feature A. 2. Datum Plane A. 3. Simulated Datum Plane A. 4. Physical Datum Simulator for A. --- ### **Understanding the Diagram** - The **top image** shows a part labeled "A" from above. - The **middle image** zooms in on the bottom of the part, showing its imperfect surface. - The **bottom image** shows the part (with an imperfect, wavy bottom) about to touch a flat granite inspection table. - The **dashed lines** represent planes. The arrows: - **A** points to the imperfect bottom surface of the part (the real feature). - **B** points to the highest points of the imperfect surface. - **C** points to a dashed line above the granite table, just touching the peaks of the part’s surface. - **D** points to the granite table itself. --- ### **Option Analysis** #### 1. **Datum Feature A** - **Meaning:** The actual physical surface on the part that is intended to be used as a datum. - **In the Image:** This is what arrow **A** points to—the real, imperfect surface of the part. #### 2. **Datum Plane A** - **Meaning:** The theoretically perfect plane that represents the datum in engineering drawings, with no imperfections. - **In the Image:** Represented by the dashed line, but not specifically the one 'C' is pointing to—it’s a conceptual plane, not the result of the inspection setup. #### 3. **Simulated Datum Plane A** - **Meaning:** The plane created by the physical simulator (such as a granite table) when the part is placed on it. This is the *actual* plane of contact, which acts as the datum for inspection. It’s the best-fit plane that touches the highest points of the imperfect surface. - **In the Image:** **C** points to the dashed line that represents this plane—the "simulated" datum plane created by the granite table touching the part’s surface. #### 4. **Physical Datum Simulator for A** - **Meaning:** The *object* used to create the simulated datum plane (e.g., the granite inspection table), not the plane itself. - **In the Image:** This is what **D** is pointing to—the granite table. --- ### **Correct Answer** #### **Simulated Datum Plane A.** - The "simulated datum plane" is formed by the granite table touching the part’s high points. This is what 'C' is pointing to—the dashed line above the granite table. --- ### **Why Other Options Are Incorrect** - **Datum Feature A:** This is the actual, imperfect surface on the part (arrow A), not the plane formed during inspection. - **Datum Plane A:** This is a theoretical, mathematically perfect plane, not the physical result of the inspection process. - **Physical Datum Simulator for A:** This is the granite table itself (arrow D), not the plane of contact. --- ## **Final Answer** > **The feature that 'C' is pointing to represents:** > > **Simulated Datum Plane A.** --- ### **Summary Table** | Option | What it Refers To | Correct/Incorrect | Why? | |-------------------------------------|------------------------------------------|-------------------|-------------------------------------| | Datum Feature A | Actual part surface | Incorrect | Points to the part, not the plane | | Datum Plane A | Perfect theoretical plane | Incorrect | Not the physical inspection result | | **Simulated Datum Plane A** | **Plane formed by granite table contact**| **Correct** | **'C' points to this plane** | | Physical Datum Simulator for A | Granite table | Incorrect | Points to the table, not the plane | --- If you need more clarification on datum concepts, feel free to ask!
