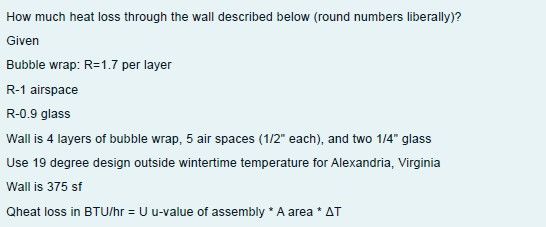

Absolutely! Let's break down the problem step by step and solve for the heat loss through the wall. --- ## **Step 1: Find the Total R-value of the Wall Assembly** ### **Given R-values:** - **Bubble wrap:** R = 1.7 per layer × 4 layers = **6.8** - **Air space:** R = 1 per airspace × 5 airspaces = **5** - **Glass:** R = 0.9 per layer × 2 layers = **1.8** **Total R-value = 6.8 (bubble wrap) + 5 (air spaces) + 1.8 (glass) = 13.6** --- ## **Step 2: Calculate the U-value** - U-value is the reciprocal of R-value. \[ U = \frac{1}{R} \] \[ U = \frac{1}{13.6} \approx 0.074 \text{ (rounded to 0.07 for simplicity)} \] --- ## **Step 3: Find Area (A) and Temperature Difference (ΔT)** - **Area (A):** 375 square feet - **ΔT (Temperature Difference):** - Inside (assumed): 70°F - Outside (given): 19°F - ΔT = 70 - 19 = **51°F** --- ## **Step 4: Plug Values into the Heat Loss Formula** \[ \text{Heat Loss (BTU/hr)} = U \times A \times \Delta T \] \[ = 0.07 \times 375 \times 51 \] ### **Calculate:** - \( 0.07 \times 375 = 26.25 \) - \( 26.25 \times 51 = 1,338.75 \) --- ## **Step 5: Final Answer** **The heat loss through the wall is approximately:** \[ \boxed{1,340 \text{ BTU/hr}} \] --- ### **Summary Table** | Component | R-Value | |------------------|-----------| | Bubble Wrap | 6.8 | | Air Spaces | 5 | | Glass | 1.8 | | **Total R** | **13.6** | | **U-Value** | **0.07** | --- If you have follow-up questions or want to see the effect of changing any layer, just ask!
