Question

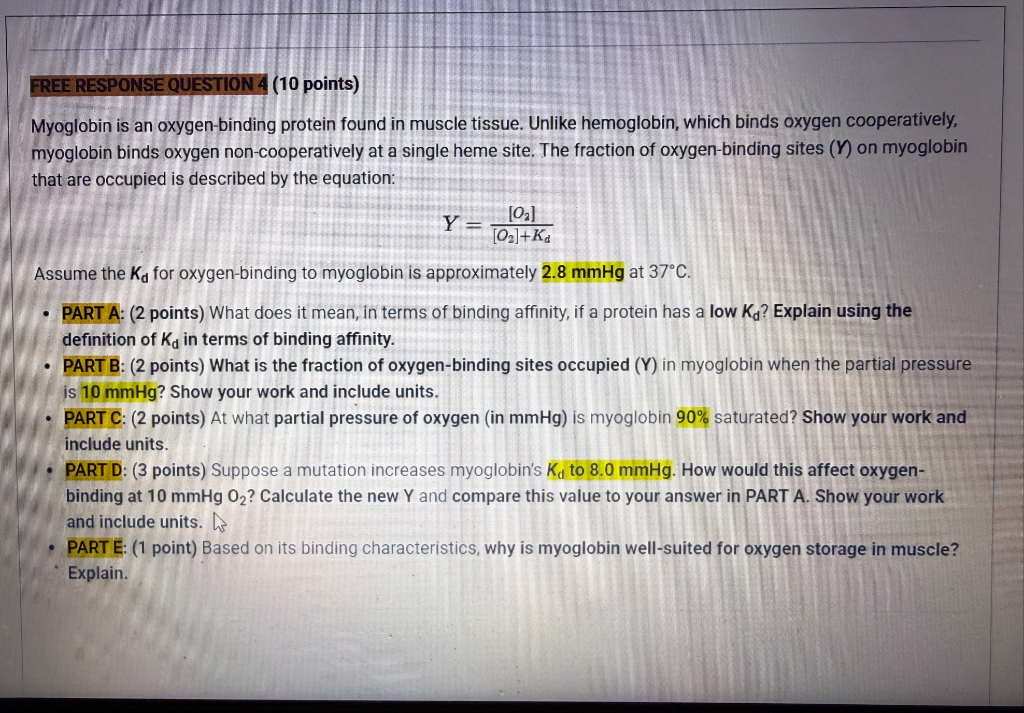

Act like a helpful tutor and exlain me :Lid Eds LLEEME LARISRL IRN BREST 3 Tw rw FR IBLIR —
Alin AH HEAT REEL
(LITER iy Ir 17 i HTH
I) — 119 points) | ; fei
iif kn isan den bridno protein found in muscle tissue. Unlike hemoglobin, which binds ong 4
fig 0globii binds oxygen non-cooperatively at a single heme site. The fraction of oxygen binding sites (
thatare occupied is described by the equation: | iL i
ir vo lol A
[i ] T OKs HH i i
| Assume the Kq for oxygen-binding to myoglobin is approximately 218/iHg at 37°C. | EHR |
/ 4) PARTA: (2 points) What does it mean, in terms of binding affinity, if a protein has a low Kg? Explain us ng the
definition of Kqin terms of binding affinity. Ji \
Hii : (2 points) What is the fraction of oxygen-binding sites occupied (Y) in myoglobin when the partial pressure
if is 2 Show your work and include units. | ih i \iE i
1 (2 points) At what partial pressure of oxygen (in mmHg) is myoglobin 90% saturated? Sh on works nd
yj, ne ide units. { i TA i
Ua : (3 points) Suppose a mutation increases myoglobin's KtBBI0 HG. How would this affect oxygen='
f bind gat 10 mmHg 0,7? Calculate the new Y and compare this value to your answer in PART A

VIPSolutions · Accepted Answer

Sure! Let's break down each part step by step.

---

# **FREE RESPONSE QUESTION 4 Explained**

## **Background**
- **Myoglobin** binds oxygen at a single site, *non-cooperatively*.
- **Fraction of sites occupied ($ Y $)** is given by:
  $$
  Y = \frac{[O_2]}{[O_2] + K_d}
  $$
- $ K_d $ (dissociation constant) for myoglobin = **2.8 mmHg** at 37°C.

---

## **PART A**

**Question:** *What does it mean, in terms of binding affinity, if a protein has a low $ K_d $? Explain using the definition of $ K_d $ in terms of binding affinity.*

### **Answer:**
- **Definition of $ K_d $:** $ K_d $ is the concentration (or partial pressure) of ligand (oxygen) at which half the binding sites are occupied.
- **Low $ K_d $:** Means that it takes a **low concentration** of oxygen for myoglobin to be 50% saturated.
- **Binding Affinity:** A **low $ K_d $** means **high binding affinity**, because myoglobin holds onto oxygen tightly and becomes saturated at low O₂ concentrations.

---

## **PART B**

**Question:** *What is the fraction of oxygen-binding sites occupied ($ Y $) in myoglobin when the partial pressure is 10 mmHg?*

### **Given:**
- $ [O_2] = 10 $ mmHg
- $ K_d = 2.8 $ mmHg

### **Calculation:**
$$
Y = \frac{[O_2]}{[O_2] + K_d} = \frac{10}{10 + 2.8} = \frac{10}{12.8} \approx .781
$$

### **Final Answer:**
- **Fraction occupied, $ Y $ ≈ .781** (or **78.1%**)

---

## **PART C**

**Question:** *At what partial pressure of oxygen (in mmHg) is myoglobin 90% saturated?*

### **Given:**
- $ Y = .90 $
- $ K_d = 2.8 $ mmHg

### **Calculation:**
$$
Y = \frac{[O_2]}{[O_2] + K_d}
$$
$$
.90 = \frac{[O_2]}{[O_2] + 2.8}
$$
Cross-multiplied:
$$
.90([O_2] + 2.8) = [O_2]
$$
$$
.90[O_2] + 2.52 = [O_2]
$$
$$
2.52 = [O_2] - .90[O_2] = .10[O_2]
$$
$$
[O_2] = \frac{2.52}{.10} = 25.2\ \text{mmHg}
$$

### **Final Answer:**
- **Partial pressure = 25.2 mmHg**

---

## **PART D**

**Question:** *Suppose a mutation increases myoglobin's $ K_d $ to 8. mmHg. How would this affect oxygen-binding at 10 mmHg O₂? Calculate the new $ Y $ and compare to PART B.*

### **Given:**
- $ [O_2] = 10 $ mmHg
- $ K_d = 8. $ mmHg

### **Calculation:**
$$
Y = \frac{10}{10 + 8} = \frac{10}{18} \approx .556
$$

**Compare to original (.781):**
- **New $ Y $ = .556 (55.6%)**
- **Old $ Y $ = .781 (78.1%)**

### **Effect:**
- The mutation **decreases binding affinity** (higher $ K_d $), so myoglobin is **less saturated** at the same oxygen pressure.

---

## **PART E**

**Question:** *Based on its binding characteristics, why is myoglobin well-suited for oxygen storage in muscle?*

### **Answer:**
- **High affinity (low $ K_d $)** allows myoglobin to bind and hold onto oxygen even at low concentrations found in muscle tissue.
- This makes it an **effective oxygen reservoir**, releasing O₂ only when muscle O₂ levels are very low (during intense exercise).

---

Let me know if you need further clarification or additional explanations for any part!

VIPSolutions · Answer

# **Summary of Myoglobin Oxygen Binding**

## **Key Concepts**
- **Myoglobin**: A protein in muscle tissues that binds oxygen non-cooperatively at a single heme site.
- **Dissociation Constant ($ K_d $)**: Indicates the binding affinity of myoglobin for oxygen. A lower $ K_d $ means higher affinity.

## **Main Points**
1. **Low $ K_d $**:
   - Indicates that myoglobin binds oxygen tightly.
   - Requires a lower concentration of oxygen for half of the binding sites to be filled.

2. **Fraction of Oxygen Binding Sites Occupied ($ Y $)**:
   - **Calculation at 10 mmHg**:
     $$
     Y = \frac{10}{10 + 2.8} \approx 0.781 \text{ (78.1%)}
     $$

3. **90% Saturation**:
   - **Partial Pressure Required**:
     $$
     [O_2] = 25.2 \text{ mmHg}
     $$

4. **Effect of Mutation Increasing $ K_d $**:
   - **New $ K_d = 8.0 $ mmHg** yields:
     $$
     Y = \frac{10}{10 + 8} \approx 0.556 \text{ (55.6%)}
     $$
   - Indicates reduced binding affinity and lower saturation at the same oxygen pressure.

5. **Suitability for Oxygen Storage**:
   - Myoglobin's high affinity allows it to function effectively as an oxygen reservoir in muscle, ensuring sufficient oxygen supply during low availability.

---

This concise summary highlights the key aspects of myoglobin's function and its importance in muscle oxygen storage. Let me know if you have any more questions!

VIPSolutions · Answer

# **Float Switch Control System for Tank**

## **System Overview**
This system uses float switches to control inflow and outflow taps based on the water level in the tank. The setup includes:
- **Float Switches**: 25%, 50%, 75%, and 95%
- **Taps**: Inflow and Outflow
- **Alarm Lights**: Low and High alarms

## **Float Switch Logic**
- **Inflow Tap**:
  - **Activated**: When the 50% float turns off.
  - **Deactivated**: When the 75% float turns on.

- **Outflow Tap**:
  - **Activated**: When the 95% float turns on.
  - **Deactivated**: When the 95% float turns off.

- **Manual Override**:
  - Both taps cannot be on simultaneously.
  - Outflow takes priority when both are activated.

- **Alarm Lights**:
  - **Low Alarm Light**: Turns on when the 25% float turns off.
  - **High Alarm Light**: Turns on when the 95% float turns on.

## **Ladder Logic Diagram**
Here's a basic representation of the ladder logic required for the system:

```
|----[25% Float OFF]----------------(Low Alarm Light ON)-----|
|                                                            |
|----[50% Float OFF]----[75% Float ON]---------------------|
|                         |                                   |
|                         |----(Inflow Tap ON)---------------|
|                                                            |
|----[95% Float ON]--------------------(Outflow Tap ON)-----|
|                                                            |
|----[95% Float OFF]-------------------(Outflow Tap OFF)----|
```

### **Explanation of Ladder Logic**
1. **Low Alarm Logic**:
   - The low alarm light is turned on when the 25% float switch is off.

2. **Inflow Control Logic**:
   - The inflow tap is activated when the 50% float switch is off and deactivated when the 75% float switch is on.

3. **Outflow Control Logic**:
   - The outflow tap is activated when the 95% float switch is on.
   - The outflow tap is deactivated when the 95% float switch is off.

4. **Manual Override**:
   - A manual override switch for each tap can be included, ensuring that if one is engaged, the other cannot turn on until it is disengaged.

## **Conclusion**
This system efficiently manages the water level in the tank using float switches, ensuring safe operation with alarms and manual overrides for maintenance or emergencies.
