Act like a helpful tutor and exlain me :
Question
2
Consider the circuit shown in Figure
2
.
Assume that the resistances R
1
,
R
2
,
R
3
and R
4
are known. The output vol

Question

Act like a helpful tutor and exlain me :
Question
2
 ﻿Consider the circuit shown in Figure
2
.
 ﻿Assume that the resistances R
1
,
 ﻿R
2
,
 ﻿R
3
 ﻿and R
4
 ﻿are known. The output voltage will have the form v
_
o
=
 ﻿A
_
vs
.

1
.
 ﻿Find the value of R
5
 ﻿to obtain the given value of A
.
student submitted image, transcription availableRy
+
Us
Ry Rs Vo
Rs

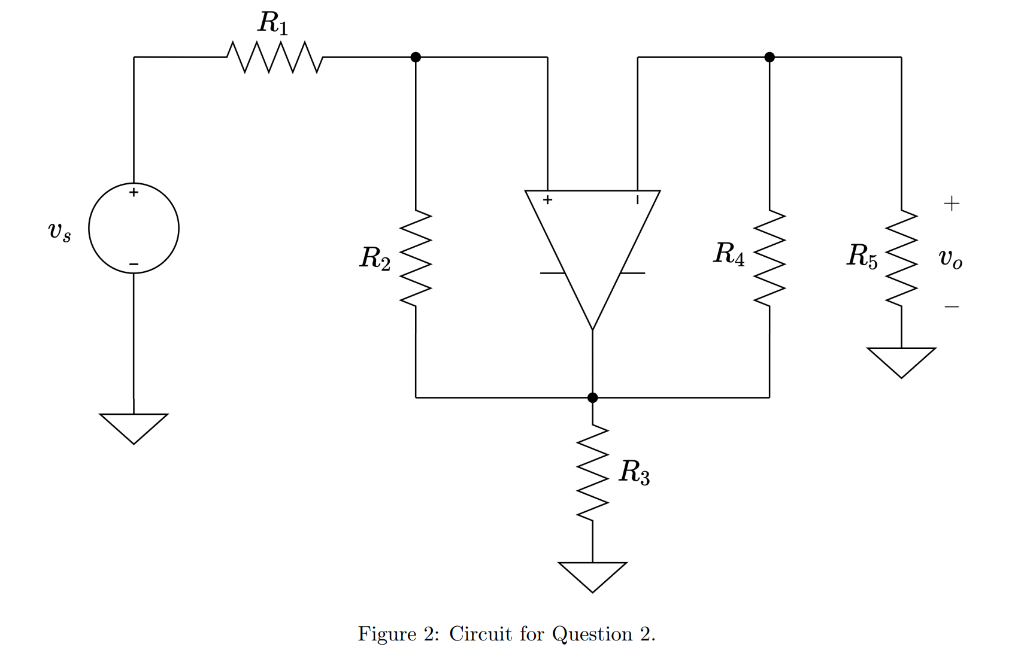

Figure 2: Circuit for Question 2.

VIPSolutions · Accepted Answer

# Solution Explanation

Let's break down the circuit and answer the question step by step.

---

## **Step 1: Identify the Circuit Configuration**

This is a **non-inverting amplifier** with a voltage divider at the input.

- The **input voltage** to the op-amp, $ v_+ $, is a divided version of $ v_s $ (because of $ R_1 $ and $ R_2 $).
- The **feedback network** is made from $ R_4 $ and $ R_5 $.

---

## **Step 2: Find the Input to the Op-Amp ($ v_+ $)**

The input voltage at the non-inverting terminal is:

$$
v_+ = v_{in} = \frac{R_2}{R_1 + R_2} v_s
$$

---

## **Step 3: Output of the Non-Inverting Amplifier**

The gain of a non-inverting amplifier with resistors $ R_4 $ (top) and $ R_5 $ (bottom) is:

$$
\text{Gain} = 1 + \frac{R_4}{R_5}
$$

So:
$$
v_o = (1 + \frac{R_4}{R_5}) v_{in}
$$

Substitute $ v_{in} $:

$$
v_o = (1 + \frac{R_4}{R_5}) \cdot \frac{R_2}{R_1 + R_2} v_s
$$

---

## **Step 4: Relate Output to Input**

Given: $ v_o = A v_s $

So,

$$
A = (1 + \frac{R_4}{R_5}) \cdot \frac{R_2}{R_1 + R_2}
$$

---

## **Step 5: Solve for $ R_5 $ in Terms of $ A $, $ R_1 $, $ R_2 $, $ R_4 $**

First, isolate the amplifier gain:

$$
\frac{A}{\frac{R_2}{R_1 + R_2}} = 1 + \frac{R_4}{R_5}
$$
$$
\frac{A (R_1 + R_2)}{R_2} = 1 + \frac{R_4}{R_5}
$$
$$
\frac{A (R_1 + R_2)}{R_2} - 1 = \frac{R_4}{R_5}
$$
$$
\frac{R_4}{R_5} = \frac{A (R_1 + R_2) - R_2}{R_2}
$$
$$
R_5 = \frac{R_4}{\frac{A (R_1 + R_2) - R_2}{R_2}}
$$
$$
R_5 = \frac{R_4 R_2}{A (R_1 + R_2) - R_2}
$$

---

## **Final Answer**

$$
\boxed{
R_5 = \frac{R_4 R_2}{A (R_1 + R_2) - R_2}
}
$$

Where:
- $ R_1, R_2, R_4 $ are known.
- $ A $ is the desired overall gain ($ v_o = A v_s $).
- $ R_5 $ is what you solve for.

---

### **Summary of Steps**

1. **Find voltage divider input** to op-amp.
2. **Write gain equation** for non-inverting op-amp.
3. **Express total output** in terms of $ v_s $.
4. **Solve for $ R_5 $** to get desired gain.

If you need a specific numerical example or further clarification, let me know!
