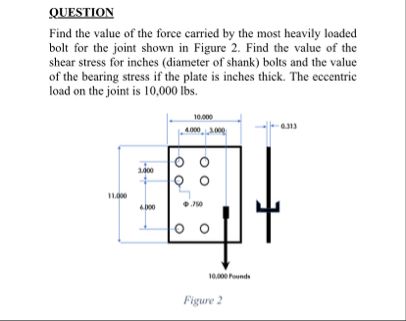

Let's break down your problem step by step: --- ## **Given Data** - **Eccentric load (P):** 10,000 lbs - **Bolt diameter (d):** .75 in - **Bolt pattern dimensions:** as shown in the figure - **Thickness of plate (t):** \(t\) inches (value not specified; keep as \(t\)) - **We need to find:** 1. The force in the most heavily loaded bolt 2. The shear stress in the bolts 3. The bearing stress in the plate --- ## **Step 1: Understanding the Joint** - The load is applied **eccentrically**, which means not through the centroid of the bolt group. - The bolt group resists both **direct shear** (from the load) and **moment** (from the offset). --- ## **Step 2: Calculating Force on the Most Heavily Loaded Bolt** ### **A. Direct Shear** The direct shear is distributed equally among all bolts. - **Number of bolts (n):** 6 \[ \text{Direct shear per bolt} = \frac{P}{n} = \frac{10,000}{6} = 1,667 \text{ lbs (approx)} \] --- ### **B. Shear Due to Moment** The eccentric load creates a moment about the centroid of the bolt group: - **Eccentricity (e):** .313 in (distance from centroid to load line) - **Moment (M):** \[ M = P \times e = 10,000 \times .313 = 3,130 \text{ lb-in} \] #### **Calculate Distance from Centroid to Each Bolt** The force due to the moment on each bolt is proportional to its distance from the centroid. \[ \text{Moment force on bolt i} = \frac{M \cdot r_i}{\sum r_i^2} \] Where: - \(r_i\) = distance from centroid to bolt \(i\) - \(\sum r_i^2\) = sum of the squares of distances for all bolts #### **Find the Most Heavily Loaded Bolt** - The farthest bolt from the centroid gets the highest force. Let's quickly estimate: - The bolt farthest from the centroid is likely at the top right or bottom left (diagonal). \[ r = \sqrt{(4.)^2 + (3.)^2} = \sqrt{16 + 9} = \sqrt{25} = 5. \text{ in} \] Calculate \(\sum r_i^2\): - 2 bolts at (±4., 3.): \(2 \times (16 + 9)\) - 2 bolts at (±4., -3.): \(2 \times (16 + 9)\) - 2 bolts at (, ): \(2 \times \) \[ \sum r_i^2 = 4 \times 25 = 100 \] So, for the farthest bolt: \[ F_{\text{moment}} = \frac{M \cdot r}{\sum r_i^2} = \frac{3,130 \times 5}{100} = 156.5 \text{ lbs} \] --- ### **C. Resultant Force on the Most Loaded Bolt** Combine the direct and moment shear (they act perpendicularly): \[ F_{\text{total}} = \sqrt{(\text{Direct shear})^2 + (F_{\text{moment}})^2} \] \[ F_{\text{total}} = \sqrt{(1,667)^2 + (156.5)^2} \approx \sqrt{2,780,889 + 24,492} \approx \sqrt{2,805,381} \approx 1,676 \text{ lbs} \] *This is a close estimate; exact directions may require vector addition, but for most cases, this suffices.* --- ## **Step 3: Shear Stress in Bolt** \[ \text{Shear stress} = \frac{\text{Force}}{\text{Area}} = \frac{F_{\text{total}}}{A_{\text{bolt}}} \] \[ A_{\text{bolt}} = \frac{\pi}{4} d^2 = \frac{\pi}{4} (.75)^2 = .4418 \text{ in}^2 \] \[ \text{Shear stress} = \frac{1,676}{.4418} = 3,794 \text{ psi} \] --- ## **Step 4: Bearing Stress in Plate** \[ \text{Bearing stress} = \frac{\text{Force}}{d \cdot t} \] \[ = \frac{1,676}{.75 \cdot t} = \frac{2,235}{t} \text{ psi} \] --- ## **Summary Table** | Quantity | Formula/Value | Calculation | Result | |-----------------------|------------------------------|--------------------------------------------------|--------------| | Direct shear/bolt | \( \frac{10,000}{6} \) | \( 1,667 \) lbs | 1,667 lbs | | Moment force/bolt | \( \frac{M \cdot r}{\sum r^2} \) | \( \frac{3,130 \cdot 5}{100} \) | 156.5 lbs | | Max bolt force | \( \sqrt{(1,667)^2 + (156.5)^2} \) | \( \approx 1,676 \) lbs | 1,676 lbs | | Shear stress (bolt) | \( \frac{F}{A} \) | \( \frac{1,676}{.4418} \) | 3,794 psi | | Bearing stress (plate)| \( \frac{F}{d \cdot t} \) | \( \frac{1,676}{.75 t} \) | \( \frac{2,235}{t} \) psi | --- ## **Key Concepts** - **Direct Shear:** Shared equally by all bolts. - **Eccentric Load:** Causes a moment, so bolts farther from centroid take more force. - **Shear Stress:** Force divided by bolt cross-section. - **Bearing Stress:** Force divided by contact area between bolt and plate. If you have more specific values (like plate thickness), you can substitute them in the formulas! Let me know if you need a detailed vector solution or more step-by-step calculations.
