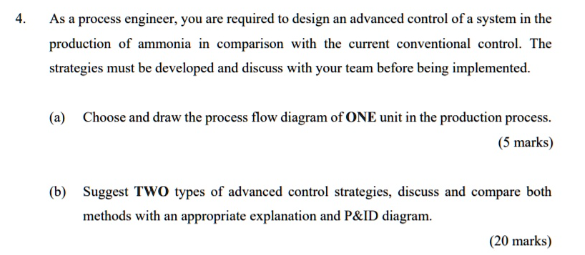

Let's break down the solution step by step for each part: --- # 4(a) Choose and Draw the Process Flow Diagram (PFD) of ONE Unit ## Step 1: Select a Unit Let's choose the **Ammonia Converter (Reactor)**, which is a core unit in the ammonia production process (Haber-Bosch Process). ## Step 2: Draw and Describe the Process Flow Diagram **Description:** - **Inputs:** Nitrogen (N₂) and Hydrogen (H₂) gases. - **Main Equipment:** Ammonia Reactor (Converter), Heat Exchanger, Cooler, Separator. - **Output:** Ammonia (NH₃) product. **Simple PFD Diagram:** ``` N₂ + H₂ → [Heat Exchanger] → [Ammonia Reactor] → [Cooler] → [Separator] → NH₃ (Product) | Recycle unreacted gases ``` - **Heat Exchanger:** Preheats gases using reactor effluent. - **Ammonia Reactor:** Converts N₂ + 3H₂ ↔ 2NH₃. - **Cooler:** Cools the reactor outlet. - **Separator:** Separates ammonia from unreacted gases. - **Recycle:** Unreacted gases are recycled to the reactor. --- # 4(b) Suggest TWO Types of Advanced Control Strategies ### Step 1: Identify Two Advanced Control Strategies **1. Model Predictive Control (MPC)** **2. Cascade Control** --- ## 1. Model Predictive Control (MPC) ### **Explanation:** - **MPC** uses a dynamic model of the process to predict future plant outputs and optimize control moves. - It considers multiple variables and constraints simultaneously. - **Example:** In the ammonia reactor, MPC can optimize temperature and pressure to maximize yield while minimizing energy use and avoiding safety limits. ### **P&ID Diagram for MPC:** ``` [Feed Gas Flow] → [Reactor] → [Cooler] → [Separator] | | | [Flow] [Temp] [Conc.] Sensors Sensors Sensors \ | / ---------------[MPC Controller]--------------- | [Control Valves] ``` - **Sensors** send data to the MPC. - **MPC Controller** computes optimal setpoints for flow, temperature, etc. - **Control Valves** adjust process variables in real-time. --- ## 2. Cascade Control ### **Explanation:** - **Cascade control** uses two (or more) controllers in a hierarchy: a primary (master) controller and a secondary (slave) controller. - The master controller sets the setpoint for the slave controller, which directly manipulates the process. - **Example:** In the ammonia reactor, the master controller maintains reactor temperature, while the slave controller maintains steam jacket pressure. ### **P&ID Diagram for Cascade Control:** ``` [Steam Supply] → [Control Valve] → [Jacket] (Heat Supply to Reactor) | [Slave Controller] ← [Temp. Sensor (Jacket)] | [Reactor] ←-------------- [Master Controller] ← [Temp. Sensor (Reactor)] ``` - **Slave Controller** controls jacket temperature via steam valve. - **Master Controller** controls reactor temperature by adjusting the slave setpoint. --- ## Step 2: Comparison Table | Aspect | Model Predictive Control (MPC) | Cascade Control | |----------------------|------------------------------------------|--------------------------------------| | Complexity | High (requires modeling, computation) | Moderate (easier implementation) | | Multivariable | Can handle multiple variables | Typically for 2 related variables | | Disturbance Handling | Excellent (predicts and compensates) | Good (faster response for disturbances in secondary loop) | | Optimization | Can optimize process performance | Cannot optimize, only maintains setpoints | | Implementation Cost | High | Low to moderate | --- ## **Summary / Final Answer** **(a)** *Chose the Ammonia Reactor unit, drew and described the process flow diagram.* **(b)** *Suggested two advanced control strategies: Model Predictive Control (MPC) and Cascade Control. Explained and drew the P&ID for both. Compared their features in a summary table.* --- If you need hand-drawn or software-generated diagrams, let me know!

# Simplified Solution for Ammonia Production Control Strategies ## 4(a) Process Flow Diagram of the Ammonia Reactor ### Ammonia Reactor Overview - **Inputs:** Nitrogen (N₂) and Hydrogen (H₂) - **Process:** Converts gases into Ammonia (NH₃) - **Main Components:** Heat Exchanger, Reactor, Cooler, Separator ### Process Flow Diagram (PFD) Here's a simple representation: ``` N₂ + H₂ → [Heat Exchanger] → [Reactor] → [Cooler] → [Separator] → NH₃ (Product) | Recycle Unreacted Gases ``` ### Description of Components - **Heat Exchanger:** Preheats the feed gases. - **Reactor:** Chemical reaction occurs (N₂ + 3H₂ ↔ 2NH₃). - **Cooler:** Cools down the product gas mixture. - **Separator:** Separates NH₃ from unreacted gases which are then recycled. --- ## 4(b) Two Advanced Control Strategies ### 1. Model Predictive Control (MPC) #### Explanation: - **MPC** predicts future process behavior using a mathematical model. - It optimizes control inputs to maintain desired outputs. #### P&ID Diagram for MPC ``` [Feed Gas] → [Reactor] → [Cooler] → [Separator] | | | [Flow] [Temp] [Conc.] | | | [MPC Controller]---------------- | [Control Valves] ``` ### 2. Cascade Control #### Explanation: - **Cascade Control** uses two controllers: a master and a slave. - The master controls the main process variable, and the slave adjusts a secondary variable. #### P&ID Diagram for Cascade Control ``` [Steam Supply] → [Control Valve] → [Jacket] | [Slave Controller] ← [Temp Sensor (Jacket)] | [Reactor] ←-------------- [Master Controller] ← [Temp Sensor (Reactor)] ``` --- ## Comparison of Control Strategies | Feature | Model Predictive Control (MPC) | Cascade Control | |----------------------|--------------------------------|------------------------------| | Complexity | High | Moderate | | Variable Handling | Multiple variables | Usually 2 related variables | | Response to Disturbances | Excellent | Good | | Optimization | Yes | No | | Cost of Implementation| High | Low to Moderate | --- ## Summary - **(a)** The ammonia reactor was selected, and a process flow diagram was created. - **(b)** Two advanced control strategies were discussed: Model Predictive Control (MPC) and Cascade Control, along with their diagrams and a comparison. Feel free to ask for further clarifications or more details on any section!
