Act like a helpful tutor and exlain me :
The jet deflectors of a jet engine can be used to slow down the airplane after landing and to push the airplane away from the gate. Two jet deflectors are considered, as shown in Fig.
2
: one that is made out of two sectors of a circle, and the other one that is made out of two straight panels. What are the forces acting on the two jet deflectors shown below, assuming that the velocity of the gases is
5
0
0
m
/
s
,
the area of the nozzle is
0
.
2
m
^
2
,
the density is
0
.
5
kg
/
m
^
3
and the flow is incompressible
(
obviously the flow is compressible but this would complicate the problem
)
?Deflector Engine nozzle Deflector Engine nozzle
4 as
. < grey A0zm [ a

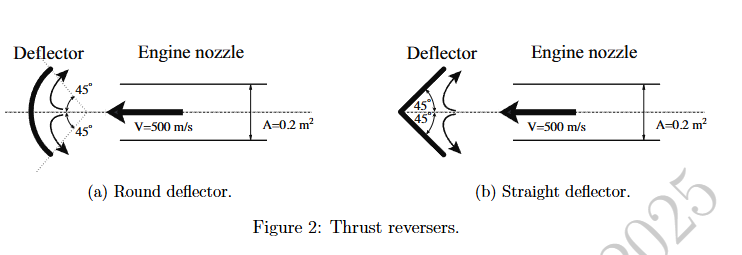

(a) Round deflector. (b) Straight deflector.
Figure 2: Thrust reversers.
Question:
Act like a helpful tutor and exlain me :
The jet deflectors of a jet engine can be used to slow down the airplane after landing and to push the airplane away from the gate. Two jet deflectors are considered, as shown in Fig.
2
: one that is made out of two sectors of a circle, and the other one that is made out of two straight panels. What are the forces acting on the two jet deflectors shown below, assuming that the velocity of the gases is
5
0
0
m
/
s
,
the area of the nozzle is
0
.
2
m
^
2
,
the density is
0
.
5
kg
/
m
^
3
and the flow is incompressible
(
obviously the flow is compressible but this would complicate the problem
)
?Deflector Engine nozzle Deflector Engine nozzle
4 as
. < grey A0zm [ a
(a) Round deflector. (b) Straight deflector.
Figure 2: Thrust reversers.
This is AI generated Response.
Asked by: manish kumar
Created at: 2025-09-12 12:30:04
Final Answer:
RenderedRaw Text
Did you like this answer?
# Forces on Jet Deflectors (Thrust Reversers)
Let's break down the physics of the two jet deflectors shown: one **round (circular arc)** and one with **straight panels**. Both are designed to redirect the jet exhaust at 45° angles relative to the engine axis.
## **Given Data**
- **Velocity of gases, \( V \) = 500 m/s**
- **Nozzle area, \( A \) = 0.2 m²**
- **Density, \( \rho \) = 0.5 kg/m³**
- **Angle of deflection, \( \theta \) = 45°**
- **Flow is incompressible**
---
## **Step 1: Find the Mass Flow Rate (\( \dot{m} \))**
\[
\dot{m} = \rho A V = 0.5 \times 0.2 \times 500 = \boxed{50~\text{kg/s}}
\]
---
## **Step 2: Momentum Change (Force) for Each Deflector**
### **General Principle**
- The **force** exerted by the jet on the deflector is equal to the **rate of change of momentum** of the gases as they are redirected.
- We analyze the \( x \) (horizontal) and \( y \) (vertical) components.
---
## **A. Round Deflector (Circular Arc)**
- **Exhaust redirected symmetrically 45° up and 45° down**
- **No net vertical force** (y-components cancel)
- **Both streams contribute to reversing the x-momentum**
### **Velocity Components After Deflection**
Each stream (half the total mass flow) is redirected at 45°:
\[
V_x = V \cos(45^\circ) = 500 \times \frac{1}{\sqrt{2}} \approx 353.6~\text{m/s}
\]
\[
V_y = V \sin(45^\circ) = 500 \times \frac{1}{\sqrt{2}} \approx 353.6~\text{m/s}
\]
### **Force Calculation**
- **Initial x-momentum:** \( \dot{m} V \) (all in -x)
- **Final x-momentum:** Each half goes at \( +353.6~\text{m/s} \) and \( -353.6~\text{m/s} \) (but both at 45° to the axis).
- **But both jets are reversed, so the net x-momentum is \( \dot{m} V_x \) in +x for each, but since both are symmetric, add both:**
\[
\text{Total force in x:}
\]
\[
F_x = \dot{m} \left[0 - (-V)\right] = \dot{m} V
\]
But after deflection, the x-component for each jet is:
\[
\text{Each jet:}~~ V \cos(45^\circ) = 353.6~\text{m/s}
\]
Total x-momentum out:
\[
\text{Total x-momentum out:} = 2 \times \frac{1}{2} \dot{m} V \cos(45^\circ) = \dot{m} V \cos(45^\circ)
\]
**So, the net force on the deflector:**
\[
F_x = \dot{m} \left[ V \cos(0) - V \cos(45^\circ) \right]
\]
\[
= 50 \left[500 - 353.6\right] = 50 \times 146.4 = \boxed{7320~\text{N}}
\]
This is the **force in the direction of motion** (slowing the plane).
### **No Sideways Force (Y-Direction)**
The vertical (y) components cancel due to symmetry.
---
## **B. Straight Panel Deflector**
The calculation is the **same** as above because the **exit direction is the same** (45° up and 45° down). The geometry doesn't affect the net change in momentum (assuming a perfect deflection without losses).
\[
F_x = 50 \left[500 - 353.6\right] = \boxed{7320~\text{N}}
\]
---
## **Summary Table**
| Deflector Type | Force Opposing Motion (\( F_x \)) | Vertical Force (\( F_y \)) |
|------------------|------------------------------------|-----------------------------|
| Round (Arc) | 7320 N | 0 N |
| Straight Panels | 7320 N | 0 N |
---
## **Physical Interpretation**
- **Both deflectors reverse the exhaust at 45° angles**, so the **change in x-momentum (opposing the airplane motion) is the same** for both.
- **No net vertical force** due to symmetry (equal upward and downward jets).
- The **force calculated (7320 N)** is the **reverse thrust** generated by the deflectors to slow down the airplane.
---
### **Let me know if you want the vector breakdown or a diagram explanation!**
