Based on the image can you use only given the 4 - to - 1 MUX as few as possible to implement “ Full Adder ” circuitX s 0 0 v Full Adder 10 10 . Cout 11 11 Cin 00 00 01 01 10 10 11 11
Question:

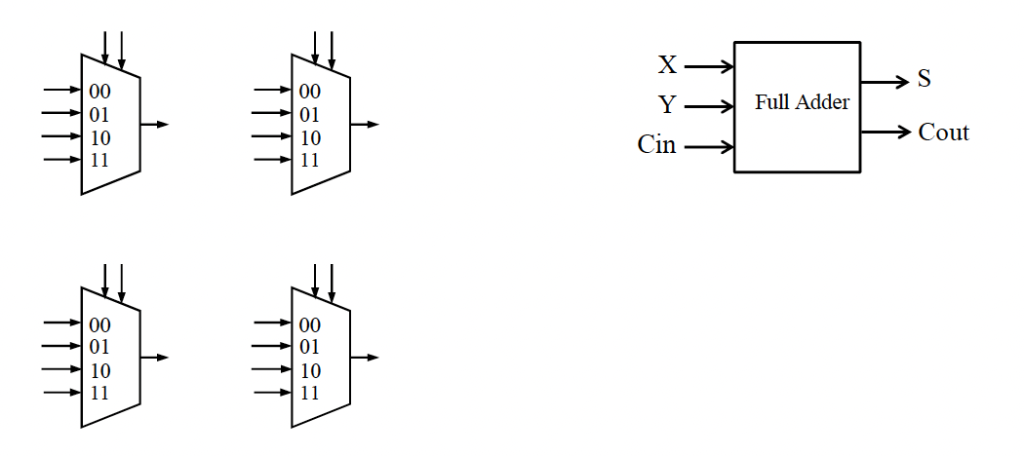

Based on the image can you use only given the
4
-
to
-
1
MUX as few as possible to implement
“
Full Adder
”
circuit
X s
0 0 v Full Adder
10 10 . Cout
11 11 Cin
00 00
01 01
10 10
11 11
This is AI generated Response.
Asked by: Jaswanth Karri
Created at: 2025-08-05 09:36:49
Asked by: Jaswanth Karri
Created at: 2025-08-05 09:36:49
Final Answer:
Rendered
Raw Text
Did you like this answer?
Let's solve how to **implement a Full Adder using as few 4-to-1 multiplexers (MUXes) as possible** based on the image.
### 1. **Full Adder Truth Table**
| X | Y | Cin | Sum (S) | Cout |
|---|---|-----|---------|------|
| 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 1 | 0 |
| 0 | 1 | 0 | 1 | 0 |
| 0 | 1 | 1 | 0 | 1 |
| 1 | 0 | 0 | 1 | 0 |
| 1 | 0 | 1 | 0 | 1 |
| 1 | 1 | 0 | 0 | 1 |
| 1 | 1 | 1 | 1 | 1 |
### 2. **Using 4-to-1 MUXes**
A 4-to-1 MUX can implement any function of 2 select lines and 4 data inputs:
- Select: S1, S0
- Inputs: I0, I1, I2, I3
#### Let’s choose selectors:
Let’s use **X** and **Y** as the select lines for both MUXes.
#### a. **SUM Output Implementation**
For a Full Adder:
- S = X ⊕ Y ⊕ Cin
Let's write S in terms of X and Y (selects) and Cin (data):
For S = f(X, Y, Cin):
| X | Y | S (when Cin = 0) | S (when Cin = 1) |
|---|---|------------------|------------------|
| 0 | 0 | 0 | 1 |
| 0 | 1 | 1 | 0 |
| 1 | 0 | 1 | 0 |
| 1 | 1 | 0 | 1 |
So for each (X,Y) = (select lines), S = Cin if X⊕Y=1, else S = ¬Cin.
So, for each combination:
- (0,0): S = Cin
- (0,1): S = ¬Cin
- (1,0): S = ¬Cin
- (1,1): S = Cin
So, the truth table for the MUX inputs:
- I0 = Cin
- I1 = ¬Cin
- I2 = ¬Cin
- I3 = Cin
**You need NOT gates for ¬Cin, which can be done externally or with extra MUXes if you are restricted to using only MUXes.**
#### b. **Cout Output Implementation**
Cout = majority(X, Y, Cin) = XY + YCin + CinX
Let’s fill the table for Cout:
| X | Y | Cin | Cout |
|---|---|-----|------|
| 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 0 |
| 0 | 1 | 0 | 0 |
| 0 | 1 | 1 | 1 |
| 1 | 0 | 0 | 0 |
| 1 | 0 | 1 | 1 |
| 1 | 1 | 0 | 1 |
| 1 | 1 | 1 | 1 |
Let’s use X and Y as selectors:
| X | Y | Cout (Cin=0) | Cout (Cin=1) |
|---|---|--------------|--------------|
| 0 | 0 | 0 | 0 |
| 0 | 1 | 0 | 1 |
| 1 | 0 | 0 | 1 |
| 1 | 1 | 1 | 1 |
So, the MUX inputs (based on Cin):
- (0,0): Cout = 0 (always 0)
- (0,1): Cout = Cin
- (1,0): Cout = Cin
- (1,1): Cout = 1 (always 1)
So, the MUX inputs:
- I0 = 0
- I1 = Cin
- I2 = Cin
- I3 = 1
---
### **Final Implementation**
- **Sum (S):** 1 MUX, inputs: Cin, ¬Cin, ¬Cin, Cin; Select: X,Y
- **Cout:** 1 MUX, inputs: 0, Cin, Cin, 1; Select: X,Y
#### **You need two 4-to-1 MUXes** to implement a Full Adder.
### **Summary Table**
| Output | MUX Select | I0 | I1 | I2 | I3 |
|--------|------------|------|-------|-------|------|
| Sum | X, Y | Cin | ¬Cin | ¬Cin | Cin |
| Cout | X, Y | 0 | Cin | Cin | 1 |
**As few as possible:**
**You need only 2 (two) 4-to-1 MUXes** to implement a Full Adder.
---
**Let me know if you need a schematic drawing!**
Question:
yes please provide schematic diagram
This is AI generated Response.
Asked by: Jaswanth Karri
Created at: 2025-08-05 09:38:19
Asked by: Jaswanth Karri
Created at: 2025-08-05 09:38:19
Final Answer:
Rendered
Raw Text
Did you like this answer?
Certainly! Here's a schematic diagram of implementing a Full Adder using two 4-to-1 multiplexers (MUXes):
---
### **Full Adder Implementation Using Two 4-to-1 MUXes**
#### **Components:**
- 2 × 4-to-1 MUXes
- NOT gate (to generate ¬Cin)
---
### **Connections**
#### **1. Generating ¬Cin**
- Input: Cin
- Output: ¬Cin (via a NOT gate)
---
### **MUX 1: Sum (S) Calculation**
- **Select lines:** X (S1), Y (S0)
- **Inputs:**
- I0 = Cin
- I1 = ¬Cin
- I2 = ¬Cin
- I3 = Cin
- **Output:** Sum (S)
**Operation:**
- When X=0, Y=0: select I0 → S=Cin
- When X=0, Y=1: select I1 → S=¬Cin
- When X=1, Y=0: select I2 → S=¬Cin
- When X=1, Y=1: select I3 → S=Cin
---
### **MUX 2: Carry-Out (Cout) Calculation**
- **Select lines:** X (S1), Y (S0)
- **Inputs:**
- I0 = 0
- I1 = Cin
- I2 = Cin
- I3 = 1
- **Output:** Cout
**Operation:**
- When X=0, Y=0: select I0 → Cout=0
- When X=0, Y=1: select I1 → Cout=Cin
- When X=1, Y=0: select I2 → Cout=Cin
- When X=1, Y=1: select I3 → Cout=1
---
### **Schematic Diagram**
```
X ---------+--------------+
| |
| |
| [MUX1] --- Sum (S)
| |
Y ---------+--------------+
| |
| [MUX2] --- Carry Out (Cout)
|
Cin ----+-----------+-- NOT ---- ¬Cin
```
- The **NOT gate** takes Cin and outputs ¬Cin.
- **MUX1** (Sum): Select lines X, Y; Inputs as above.
- **MUX2** (Cout): Select lines X, Y; Inputs as above.
---
### **Summary:**
- **Total MUXes:** 2
- **Additional gates:** 1 NOT gate for ¬Cin
- **Inputs:** X, Y, Cin
- **Outputs:** Sum (S), Carry out (Cout)
---
**Note:** If you want to implement only with MUXes, you can generate ¬Cin using another MUX or an inverter if available, but typically, a single NOT gate suffices.
Would you like a graphical diagram with all connections drawn out in detail?
