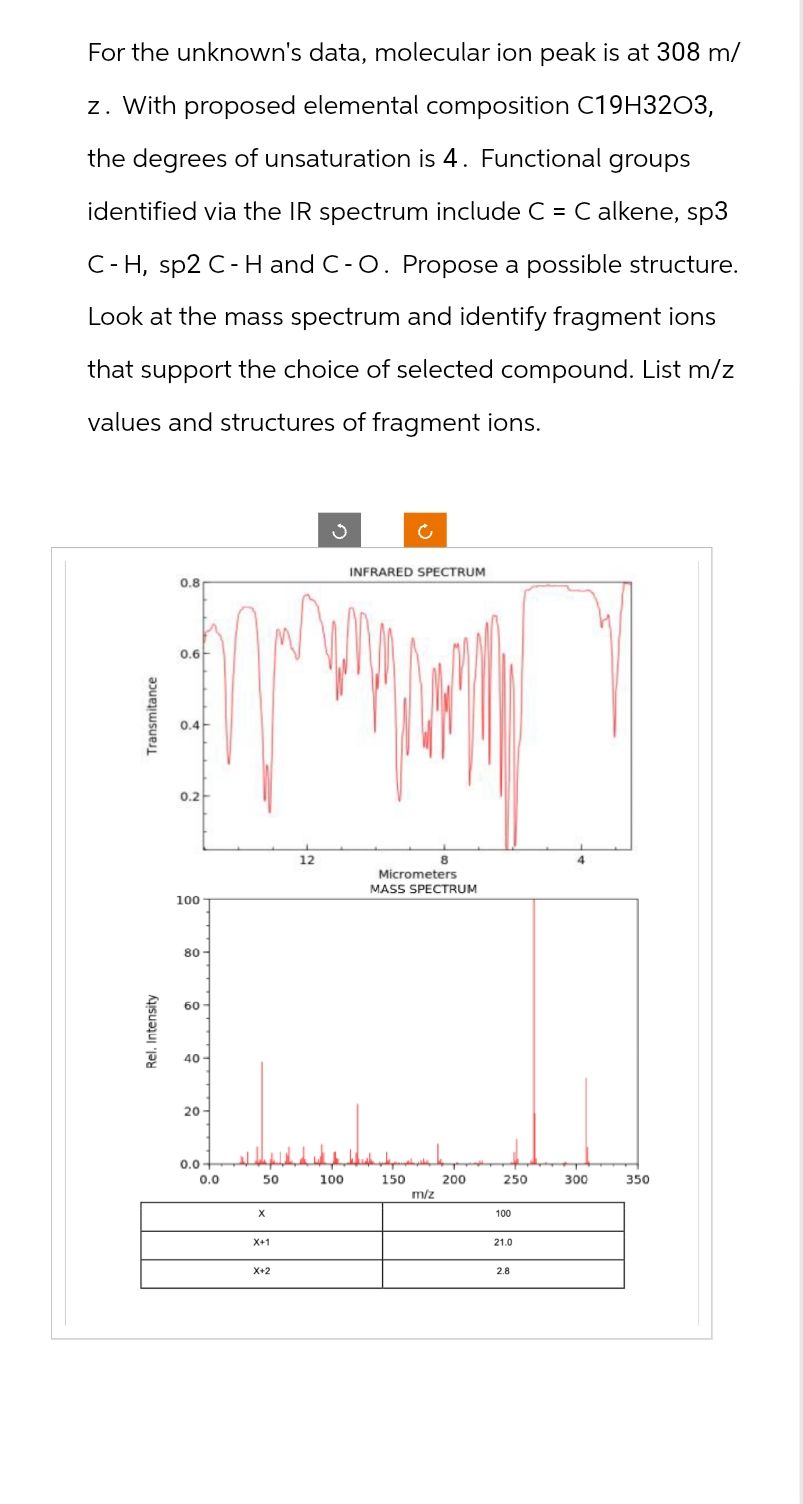

## Step 1: Analyze Data and Propose Structure ### **Given Data** - **Molecular ion peak**: 308 m/z - **Elemental composition**: C₁₉H₃₂O₃ - **Degrees of unsaturation**: 4 - **IR functional groups**: C=C (alkene), sp³ C-H, sp² C-H, C-O - **Mass spectrum**: Major peak at 308, several lower m/z fragments ### **Degrees of Unsaturation Calculation** \[ \text{Degrees of Unsaturation} = \frac{2C + 2 - H}{2} \] \[ = \frac{2(19) + 2 - 32}{2} = \frac{38 + 2 - 32}{2} = \frac{8}{2} = 4 \] - **Interpretation**: 4 rings/double bonds or combinations thereof. ### **IR Interpretation** - **C=C alkene**: Indicates at least one double bond - **sp³ C-H, sp² C-H**: Mixture of saturated and unsaturated carbons - **C-O**: Ether, alcohol, or ester group present ### **Possible Structure** - Long alkyl chain (many H, high mass) - At least one alkene (C=C) - At least one C-O (likely an ester or ether) - 4 degrees of unsaturation: e.g., 1 alkene + 3 rings or 2 alkenes + 2 rings, or 1 ring + 3 double bonds, etc. **A likely candidate:** - **A fatty acid ester with an alkene** Example: **Methyl linolenate** (C₁₉H₃₂O₂) but with an extra O, possibly a methylated dihydroxy fatty acid ester. **Explanation:** - The high hydrogen count and carbon number suggest a fatty acid derivative. - The presence of C=C, C-O, and the correct degree of unsaturation fits a structure like a methyl/ethyl ester of a trienoic acid (with a hydroxyl or ether group). --- ## Step 2: Mass Spectrum Analysis & Fragment Ions ### **Key Peaks** - **Molecular ion (M⁺):** 308 m/z (C₁₉H₃₂O₃) - **Major fragment**: Look for peaks that correspond to common losses: - Loss of methoxy (OCH₃, 31 m/z) - Loss of water (18 m/z) - Loss of acylium ion (RCO⁺), etc. #### **Fragmentation Example** 1. **M - 31 (methoxy loss):** 308 - 31 = **277 m/z** Structure: [M - OCH₃]⁺ (loss of methoxy from an ester) 2. **M - 43 (propyl or acetyl loss):** 308 - 43 = **265 m/z** Structure: [M - C₃H₇]⁺ or [M - COCH₃]⁺ 3. **M - 60 (acetic acid loss):** 308 - 60 = **248 m/z** Structure: [M - CH₃COOH]⁺ #### **Assigning Structures** - **m/z 277**: Suggests loss of a methoxy group (OCH₃) from a methyl ester. - **m/z 265/248**: Suggests further fragmentation, such as loss of an alkyl chain or acyl group, common in esters/fatty acids. --- ## **Final Answer** ### **Proposed Structure** - **Methyl ester of a trienoic acid with an extra oxygen:** Likely structure: **Methyl 9,12,15-trihydroxy-octadeca-9,12,15-trienoate** (or a similar methylated hydroxy-polyunsaturated fatty acid ester, C₁₉H₃₂O₃) ### **Supporting Fragment Ions** - **m/z 277**: [M - OCH₃]⁺ (loss of methoxy from ester) - **m/z 265/248**: Further fragmentation, likely from loss of alkyl groups or acyl part. - **Molecular ion at 308 m/z** confirms the structure and composition. --- ### **Summary Table** | m/z | Fragment | Structure Explanation | |---------|---------------------------|------------------------------------------| | 308 | M⁺ | Parent ion (C₁₉H₃₂O₃) | | 277 | [M - OCH₃]⁺ | Loss of methoxy group (ester cleavage) | | 265/248 | [M - C₃H₇]⁺ / [M - CH₃COOH]⁺ | Loss of alkyl/acyl group | **Conclusion:** The proposed structure is a methylated hydroxy-polyunsaturated fatty acid ester (C₁₉H₃₂O₃) with IR and MS data supporting the presence of alkene and ester groups. Fragmentation patterns are consistent with this compound.
