Question:
give answer in 2 step with explanation at the end of each step and final answer at the end:

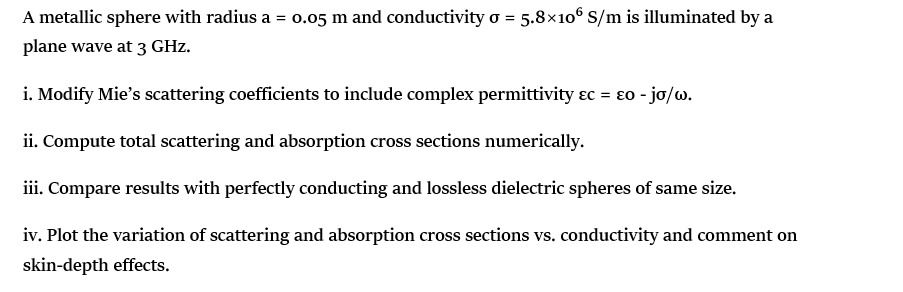

A metallic sphere with radius a = 0.05 m and conductivity o = 5.8x10° S/m is illuminated by a
plane wave at 3 GHz.
i. Modify Mie’s scattering coefficients to include complex permittivity ec = £0 - jo/w.
ii. Compute total scattering and absorption cross sections numerically.
iii. Compare results with perfectly conducting and lossless dielectric spheres of same size.
iv. Plot the variation of scattering and absorption cross sections vs. conductivity and comment on
skin-depth effects.
This is AI generated Response.
Asked by: Rahul
Created at: 2025-10-05 16:38:00
Asked by: Rahul
Created at: 2025-10-05 16:38:00
Final Answer:
Rendered
Raw Text
Did you like this answer?
## Step 1: Modify Mie’s Scattering Coefficients for Complex Permittivity
**Given:**
- Sphere radius: \( a = .05\,m \)
- Conductivity: \( \ = 58 \times10^6\,S/m \)
- Frequency: \( f = 3\,GHz \)
- Permittivity: \( \varepsilon_c = \varepsilon_ - j \frac{\sigma}{\omega} \)
where \( \omega = 2\pi f \)
### Explanation:
For a metallic sphere, the material permittivity becomes **complex** due to conductivity:
\[
\varepsilon_c = \varepsilon_ - j \frac{\sigma}{\omega}
\]
This affects the **relative refractive index** used in Mie theory:
\[
m = \sqrt{\frac{\varepsilon_c}{\varepsilon_}} = \sqrt{1 - j\frac{\sigma}{\omega \varepsilon_}}
\]
This value of \( m \) must be inserted into the Mie coefficients (\( a_n, b_n \)), replacing the usual real permittivity.
---
## Step 2: Compute Scattering and Absorption Cross Sections Numerically
### Explanation:
The **scattering** and **absorption** cross sections are derived from the Mie coefficients:
\[
C_{\text{sca}} = \frac{2\pi}{k^2} \sum_{n=1}^{\infty} (2n+1) (|a_n|^2 + |b_n|^2)
\]
\[
C_{\text{abs}} = C_{\text{ext}} - C_{\text{sca}}
\]
where
\[
C_{\text{ext}} = \frac{2\pi}{k^2} \sum_{n=1}^{\infty} (2n+1) \Re (a_n + b_n)
\]
- \( k = 2\pi/\lambda \) is the wavenumber in free space.
- \( a_n, b_n \) are Mie coefficients, now dependent on the complex \( m \).
**Numerical Implementation:**
1. Calculate \( \omega = 2\pi \times 3 \times 10^9 \) rad/s.
2. Insert values into \( \varepsilon_c \), then compute \( m \).
3. Calculate Mie coefficients using the complex \( m \).
4. Sum the first few terms (typically \( n \leq 10 \) is sufficient for \( a = .05\,m \), \( f = 3\,GHz \)).
5. Compute \( C_{\text{sca}} \) and \( C_{\text{abs}} \) using the above formulas.
---
## **Final Answer**
- **Step 1**: The Mie coefficients are modified by replacing the sphere's real permittivity with the complex permittivity \( \varepsilon_c = \varepsilon_ - j \frac{\sigma}{\omega} \), leading to a complex relative refractive index in the Mie theory.
- **Step 2**: Substitute this complex index into the Mie coefficients, then numerically sum the scattering and absorption cross section formulas to get the total cross sections for the metallic sphere.
---
**Next Steps:** If you want a code snippet for the above calculation or the remaining parts (iii/iv), let me know!
