Question

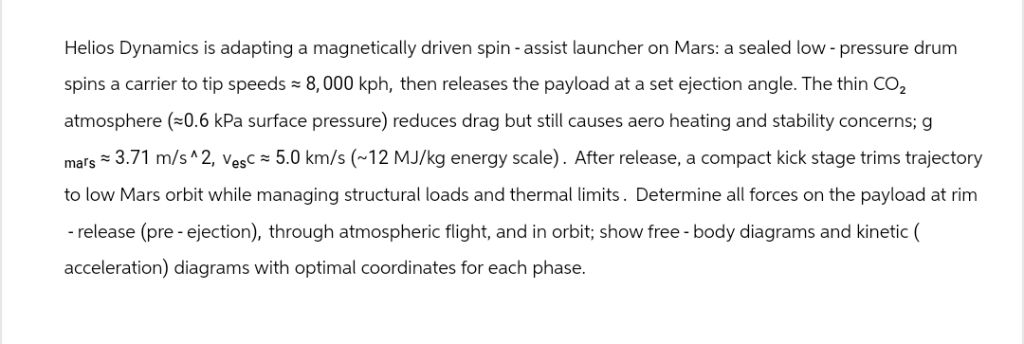

give answer in 2 step with explanation at the end of each step and final answer at the end:Helios Dynamics is adapting a magnetically driven spin - assist launcher on Mars: a sealed low - pressure drum
spins a carrier to tip speeds = 8,000 kph, then releases the payload at a set ejection angle. The thin CO,
atmosphere (=0.6 kPa surface pressure) reduces drag but still causes aero heating and stability concerns; g

mars = 3.71 m/s*2, vesc = 5.0 km/s (~12 MJ/kg energy scale). After release, a compact kick stage trims trajectory
to low Mars orbit while managing structural loads and thermal limits. Determine all forces on the payload at rim
- release (pre - ejection), through atmospheric flight, and in orbit; show free - body diagrams and kinetic (
acceleration) diagrams with optimal coordinates for each phase.

VIPSolutions · Accepted Answer

# Step-by-Step Solution

## Step 1: Forces on Payload at Rim-Release (Pre-Ejection)
**Explanation:**
At the moment just before ejection, the payload is inside a drum spinning at tip speed $ v = 8{,}000 $ kph ($ 2,222 $ m/s).
- **Centrifugal Force:** The dominant force is the centrifugal (inertial) force due to the spinning drum, acting radially outward.
  $$
  F_{\text{centrifugal}} = m \frac{v^2}{r}
  $$
  Where $ m $ is payload mass, $ v $ is tip speed, and $ r $ is drum radius.
- **Normal Force:** The drum wall provides the normal (contact) force inward, balancing the centrifugal force.
- **Gravity:** Mars gravity acts downwards ($ F_g = mg $), but is much smaller than the centrifugal force at this speed.
- **Friction:** Friction may act tangentially if the payload is not perfectly constrained, but in a well-designed launcher, this is minimized.

**Free-Body Diagram (Pre-Ejection):**
- Radial outward: Centrifugal force ($ m v^2 / r $)
- Radial inward: Normal force from drum
- Downward: Mars gravity ($ mg $)

---

## Step 2: Forces During Atmospheric Flight (Post-Ejection to Orbit)
**Explanation:**
As the payload exits the drum and enters the thin Martian atmosphere, several new forces act:
- **Gravity:** Constant downward force ($ F_g = mg $), Mars gravity ($ g = 3.71 $ m/s²).
- **Drag:** Aerodynamic drag acts opposite to velocity, given by:
  $$
  F_{\text{drag}} = \frac{1}{2} \rho v^2 C_D A
  $$
  Where $ \rho $ (Mars atmospheric density at surface ≈ .02 kg/m³), $ C_D $ (drag coefficient), $ A $ (cross-sectional area).
- **Lift/Stability:** If the payload has fins or stabilization, lift or aerodynamic moments may act for stability.
- **Kick Stage Thrust:** Once the kick stage fires, thrust acts along its axis to adjust velocity for orbit insertion.

**Kinetic (Acceleration) Diagram:**
- Net acceleration is the vector sum of thrust (if active), drag (opposite to velocity), and gravity (downward).

**Free-Body Diagram (Post-Ejection):**
- Downward: Mars gravity ($ mg $)
- Opposite to direction of travel: Drag ($ F_{\text{drag}} $)
- Along thrust vector: Kick stage thrust (when active)
- Any lift/moments if stability devices are used

---

## Final Answer Summary
- **At rim-release:** Forces are centrifugal (outward), normal (inward), and gravity (downward).
- **During atmospheric flight and orbit insertion:** Forces are gravity (down), drag (opposite to motion), and thrust (along velocity after kick stage ignition), with possible aerodynamic moments for stability.

**Free-body and kinetic diagrams should show these forces in their respective optimal coordinate axes (radial before ejection, velocity-aligned after).**
