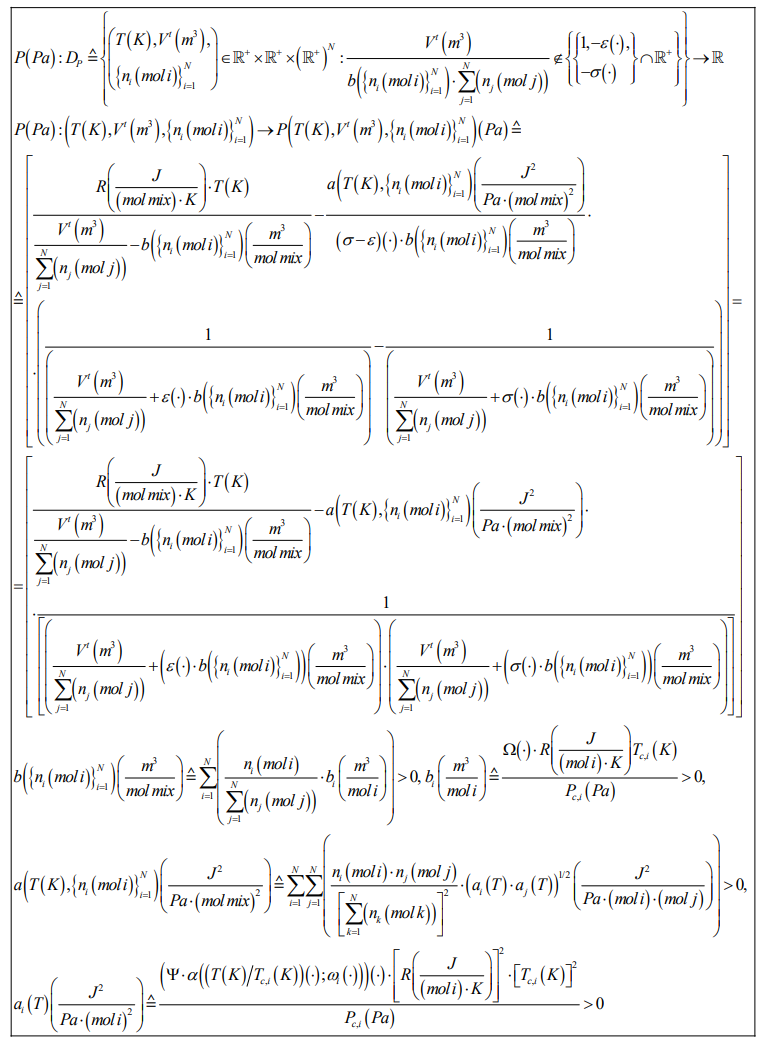

Let's break down the equations and information step by step and explain their usage, particularly for the **Generic Cubic Equations of State (GCEOS)** and the **Ideal Gas Equation of State (IGEOS)**. --- # **Step 1: Understanding the IGEOS** The IGEOS (Ideal Gas Law) is defined as: \[ P(Pa): D_p \triangleq \left\{ \left(T(K), V^t(m^3), \{ n_i(mol_i) \}_{j=1}^N \right) \in \mathbb{R}^+ \times \mathbb{R}^+ \times (\mathbb{R}^+)^N \right\} \rightarrow \mathbb{R} \] \[ P(Pa) : (T(K), V^t(m^3), \{ n_i(mol_i) \}_{j=1}^N) \mapsto P(T(K), V^t(m^3), \{ n_i(mol_i) \}_{j=1}^N)(Pa) \triangleq \left[ \frac{R \left(\frac{J}{(mol\, mix) \cdot K}\right) \cdot T(K)}{\sum_{j=1}^N n_j (mol_j) / V^t (m^3)} \right] \] This is the familiar: \[ PV = nRT \] where \( n \) is the total moles, \( V \) is total volume, \( R \) is the gas constant, and \( T \) is temperature. --- # **Step 2: Understanding the GCEOS** The GCEOS is a more general equation for real gases, given by: \[ P(Pa): D_p \triangleq \left\{ ... \right\} \rightarrow \mathbb{R} \] The complicated boxed equation in the first image is the general cubic form, which can be specialized into forms like van der Waals (vdW), Redlich-Kwong (RK), Soave-Redlich-Kwong (SRK), and Peng-Robinson (PR). The general format is: \[ P = \frac{RT}{V - b} - \frac{a}{V^2 + \epsilon b V + \sigma b^2} \] where \( a \), \( b \), \( \epsilon \), and \( \sigma \) are parameters specific to the model and the gas. --- # **Step 3: GCEOS Parameters Table** From Table 1, the parameters for each equation of state (EOS) are: | E.O.S. | \(\alpha(T_{r,j}; \omega_j)\) | \(\sigma\) | \(\epsilon\) | \(\Omega\) | \(\Psi\) | \(Z_c\) | |--------|----------------|--------|-----------|----------|------------|--------| | vdW | 1 | | | 1/8 | 27/64 | 3/8 | | RK | \(T_{r,j}^{-1/2}\) | 1 | | .08664 | .42748 | 1/3 | | SRK | see formula | 1 | | .08664 | .42748 | 1/3 | | PR | see formula | \(1+\sqrt{2}\) | \(1-\sqrt{2}\) | .07780 | .45724 | .30740 | --- # **Step 4: Mixture Rules (Mixing Parameters)** For a mixture, the parameters \( a \) and \( b \) are calculated as: \[ b = \sum_{i=1}^N \sum_{j=1}^N y_i y_j b_{ij} \] \[ a = \sum_{i=1}^N \sum_{j=1}^N y_i y_j a_{ij} \] where \( y_i \) is the mole fraction of component \( i \). For pure components, the values are: \[ b_i = \Omega \cdot R \cdot T_{c,i} / P_{c,i} \] \[ a_i = \Psi \cdot \alpha(T_r) \cdot [R T_{c,i}]^2 / P_{c,i} \] --- # **Step 5: Reduced Temperature and Alpha Function** Reduced temperature: \[ T_{r,i} = \frac{T}{T_{c,i}} \] Alpha function (\(\alpha\)) depends on the EOS, see Table 1. --- # **Step 6: Example For Hydrogen and Methane** Given: - H\(_2\): \( T_{c,1} = 33.19\,K,\,P_{c,1} = 13.13 \times 10^5\,Pa,\,\omega_1 = -.216 \) - CH\(_4\): \( T_{c,2} = 190.6\,K,\,P_{c,2} = 45.99 \times 10^5\,Pa,\,\omega_2 = .012 \) Suppose you want to compute the parameters for the Peng-Robinson EOS at \( T \): Calculate \( T_{r,1} \) and \( T_{r,2} \): \[ T_{r,1} = \frac{T}{33.19},\quad T_{r,2} = \frac{T}{190.6} \] For PR EOS: \[ b_i = .07780 \frac{R T_{c,i}}{P_{c,i}} \] \[ a_i = .45724 \frac{\left[ R T_{c,i} \right]^2 \alpha_i(T)}{P_{c,i}} \] where \[ \alpha_i(T) = \left[ 1 + \left(.37464 + 1.54226\omega_i - .26992\omega_i^2\right) \left(1 - \sqrt{T_{r,i}}\right) \right]^2 \] --- # **Step 7: Final Pressure Calculation** Insert \( a \) and \( b \) into the cubic EOS: \[ P = \frac{RT}{V - b} - \frac{a}{V^2 + \epsilon b V + \sigma b^2} \] where \( a \) and \( b \) are the mixture parameters (if a mixture), or the pure component values. --- # **Summary** 1. Choose EOS (vdW, RK, SRK, PR) and get parameters from Table 1. 2. Calculate reduced temperature \( T_{r,i} \). 3. Calculate \( \alpha_i(T) \), \( a_i \), and \( b_i \) for each component. 4. For mixtures, use mixing rules to get \( a \) and \( b \). 5. Substitute values into the cubic EOS formula to get pressure. If you provide a specific temperature, composition, and volume, I can plug in numbers to show a worked example for the H\(_2\)/CH\(_4\) mixture. Let me know if you'd like to see that!
