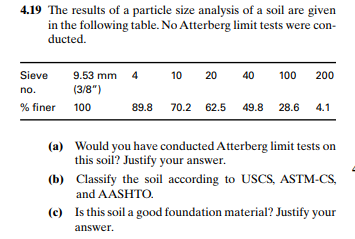

Let's analyze the problem step-by-step. --- ## Given Data: | Sieve No. | 4 | 10 | 20 | 40 | 100 | 200 | |------------|-------|-------|-------|-------|--------|--------| | Sieve size (mm) | 9.53 | 2.00 | .85 | .425 | .075 | - | | % Finer | 89.8 | 70.2 | 62.5 | 49.8 | 28.6 | 4.1 | --- ## (a) **Atterberg Limit Test** ### Question: Would you have conducted Atterberg limit tests on this soil? Justify. ### Explanation: - **Atterberg limits** (liquid limit, plastic limit, and shrinkage limit) are typically conducted on **fine-grained soils** (clays and silts). - The **grain size analysis** shows a significant percentage of fines (~28.6% passing .075 mm sieve) and the % finer at 200 sieve is 4.1%. - Since the soil contains a **notable amount of fines** (more than 50% passing the .075 mm sieve for clay soils), **Atterberg limits are relevant**. ### **Answer:** Yes, Atterberg limit tests should be conducted because the soil contains a considerable percentage of fines, indicating it could be a clay or silt soil where Atterberg limits are critical for understanding its engineering properties. --- ## (b) **Classify the soil according to USCS, ASTM-CS, and AASHTO** ### Step 1: Determine the % fines: - % passing .075 mm sieve = 28.6% - Since it's less than 50%, the soil is **silt or clay** based on fines. ### Step 2: Use the grain size distribution to classify: - **USCS Classification:** - If **more than 50% of the soil** passes the .075 mm sieve, then it's a clay or silt. - **Since 28.6% passes .075 mm**, the soil is **silty** (more than 50% retained on .075 mm sieve). - **Plasticity or Fineness:** - If Atterberg limits are available, further classification is possible. - Without Atterberg limits, based on the grain size, it's classified as **Silt (ML or CL)** depending on plasticity. - **ASTM and AASHTO:** - Based on the **grain size** and **fineness**, the soil is **silt** (ML or CL in USCS, depending on plasticity). ### **Final classification:** - **USCS:** **ML (Inorganic silt with low plasticity)** or **ML/CL** depending on plasticity tests. - **ASTM-CS:** Similar to USCS; classified as **silt**. - **AASHTO:** **A-4 or A-6**, depending on the plasticity. **Note:** Exact classification requires Atterberg limit data, but based on grain size, **silt** is the primary classification. --- ## (c) **Is this soil a good foundation material? Justify** ### Explanation: - **Good foundation materials** should have: - Adequate strength. - Low compressibility. - Good drainage. - Stability. - **Silt soils**: - Usually **moderately compressible**. - May have **low shear strength**. - Can be problematic if saturated, leading to **liquefaction** or **settlement**. - **Based on grain size**, this soil has a significant amount of fines, which may lead to **drainage issues** and **low stability**. ### **Conclusion:** - **This soil may not be ideal** as a foundation material unless stabilized or improved. - **Further tests** like shear strength, compressibility, and consolidation would be necessary. --- # **Final Summary:** ### (a) **Atterberg limit tests:** **Yes**, because the soil contains fines (~28.6%), indicating potential clay or silt. ### (b) **Classification:** **USCS:** ML (silt), pending Atterberg limits for precise classification. **ASTM-CS:** Silt. **AASHTO:** A-4 or A-6, depending on plasticity. ### (c) **Suitability as foundation material:** **No**, generally not ideal without stabilization due to potential compressibility and stability concerns. --- Let me know if you'd like further details!
