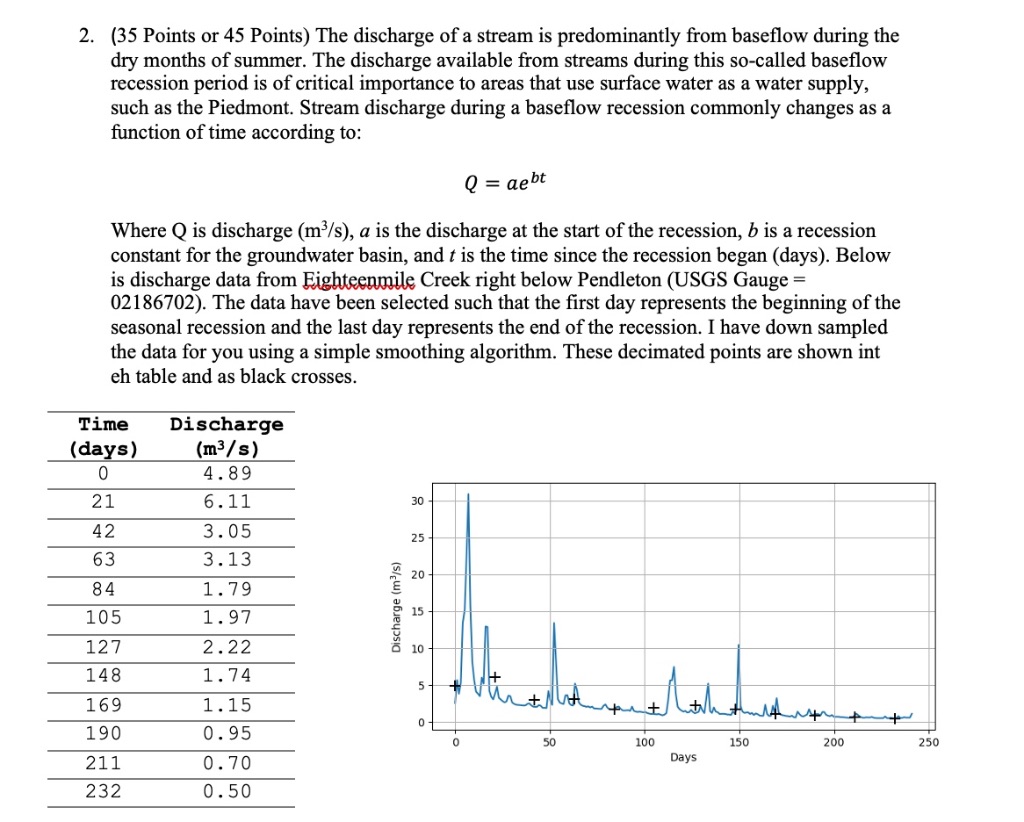

PLEASE SHOW ME HOW TO CALCULATE THE MODELED VALUES AND THE COEFFICIENT OF DETERMINATION! THE OBSERVED VALUES IS THE DISCHARGE VALUES LISTED.2. (35 Points or 45 Points) The discharge of a stream is predominantly from baseflow during the
dry months of summer. The discharge available from streams during this so-called baseflow
recession period is of critical importance to areas that use surface water as a water supply,
such as the Piedmont. Stream discharge during a baseflow recession commonly changes as a
function of time according to:
Q = aelt
Where Q is discharge (m/s), a is the discharge at the start of the recession, b is a recession
constant for the groundwater basin, and ¢ is the time since the recession began (days). Below
is discharge data from Eighteenmile Creek right below Pendleton (USGS Gauge =
02186702). The data have been selected such that the first day represents the beginning of the
seasonal recession and the last day represents the end of the recession. I have down sampled
the data for you using a simple smoothing algorithm. These decimated points are shown int
ch table and as black crosses.
Time Discharge
(days) (m3/s)
0 4.89
21, 6.11 Ed
12 3.05 3
63 3.13 =
Et 22
84 1.79 £
105 1.97 id
127 2.22 810
148 1.74 s
169 1.15
— = 5
190 0.95 [3 EY 100 150 200 250
211 0.70 Eye
232 0.50
Question:
PLEASE SHOW ME HOW TO CALCULATE THE MODELED VALUES AND THE COEFFICIENT OF DETERMINATION! THE OBSERVED VALUES IS THE DISCHARGE VALUES LISTED.2. (35 Points or 45 Points) The discharge of a stream is predominantly from baseflow during the
dry months of summer. The discharge available from streams during this so-called baseflow
recession period is of critical importance to areas that use surface water as a water supply,
such as the Piedmont. Stream discharge during a baseflow recession commonly changes as a
function of time according to:
Q = aelt
Where Q is discharge (m/s), a is the discharge at the start of the recession, b is a recession
constant for the groundwater basin, and ¢ is the time since the recession began (days). Below
is discharge data from Eighteenmile Creek right below Pendleton (USGS Gauge =
02186702). The data have been selected such that the first day represents the beginning of the
seasonal recession and the last day represents the end of the recession. I have down sampled
the data for you using a simple smoothing algorithm. These decimated points are shown int
ch table and as black crosses.
Time Discharge
(days) (m3/s)
0 4.89
21, 6.11 Ed
12 3.05 3
63 3.13 =
Et 22
84 1.79 £
105 1.97 id
127 2.22 810
148 1.74 s
169 1.15
— = 5
190 0.95 [3 EY 100 150 200 250
211 0.70 Eye
232 0.50
This is AI generated Response.
Asked by: Harshit
Created at: 2025-09-26 21:28:08
Final Answer:
RenderedRaw Text
Did you like this answer?
# Calculating Modeled Values and Coefficient of Determination (\(R^2\))
Let's break your task into two parts:
## 1. **Modeling the Discharge Values**
The discharge is modeled as:
\[
Q = a e^{bt}
\]
Where:
- \( Q \) = discharge (m³/s)
- \( a \) = initial discharge (at \( t = \))
- \( b \) = recession constant
- \( t \) = time (days)
### **Step 1: Linearizing the Equation**
Take the natural logarithm of both sides:
\[
\ln Q = \ln a + bt
\]
This is a linear equation of the form \( y = c + mx \), where:
- \( y = \ln Q \)
- \( c = \ln a \)
- \( m = b \)
- \( x = t \)
### **Step 2: Prepare the Data**
| Time (days) | Discharge (\(Q\)) | \(\ln(Q)\) |
|-------------|-------------------|------------|
| | 4.89 | 1.587 |
| 21 | 6.11 | 1.810 |
| 42 | 3.05 | 1.116 |
| 63 | 3.13 | 1.141 |
| 84 | 1.79 | .583 |
| 105 | 1.97 | .677 |
| 127 | 2.22 | .798 |
| 148 | 1.74 | .555 |
| 169 | 1.15 | .140 |
| 190 | .95 | -.051 |
| 211 | .70 | -.357 |
| 232 | .50 | -.693 |
*(You can fill in the natural log values using a calculator: \(\ln(Q)\))*
### **Step 3: Linear Regression on \((t, \ln Q)\)**
Use least squares to fit a line \( \ln Q = \ln a + bt \). This can be done in Excel, Python, or even by hand for a small dataset.
#### **Quick Calculation Example**
If you use Excel:
- Place \( t \) in one column and \( \ln Q \) in another.
- Use the `=LINEST()` function to get the slope (\( b \)) and intercept (\( \ln a \)).
#### **Manual Calculation Outline** (for the slope \(b\)):
\[
b = \frac{N \sum (t_i \ln Q_i) - \sum t_i \sum \ln Q_i}{N \sum t_i^2 - (\sum t_i)^2}
\]
\[
\ln a = \frac{\sum \ln Q_i - b \sum t_i}{N}
\]
Where \(N\) is the number of data points.
### **Step 4: Calculate Modeled Values**
With the fitted \( a \) and \( b \), plug each \( t \) into:
\[
Q_{\text{modeled}} = a e^{bt}
\]
---
## 2. **Calculating the Coefficient of Determination (\( R^2 \))**
The \( R^2 \) value measures how well the model explains the observed data.
\[
R^2 = 1 - \frac{\sum (Q_{\text{observed}} - Q_{\text{modeled}})^2}{\sum (Q_{\text{observed}} - \bar{Q}_{\text{observed}})^2}
\]
Where:
- \( Q_{\text{observed}} \) = observed discharge values
- \( Q_{\text{modeled}} \) = modeled discharge values
- \( \bar{Q}_{\text{observed}} \) = mean of observed discharge values
---
## **Summary of Steps**
1. **Take the natural log of all discharge values.**
2. **Fit a straight line to \( (t, \ln Q) \) using linear regression to get \( b \) and \( \ln a \).**
3. **Exponentiate the intercept to get \( a \).**
4. **Calculate modeled values using \( Q_{\text{modeled}} = a e^{bt} \) for all \( t \).**
5. **Calculate \( R^2 \) using the formula above.**
---
### **Example (with made-up regression values):**
Suppose regression gives \( \ln a = 1.7 \), \( b = -.008 \):
\[
a = e^{1.7} = 5.4739
\]
So:
\[
Q_{\text{modeled}} = 5.47 \cdot e^{-.008 t}
\]
Plug each \( t \) into this equation for modeled values, then compute \( R^2 \) as shown.
---
## **If you want Python/Excel code, let me know!**
Would you like a step-by-step in Excel or Python? Or a worked numerical example?
