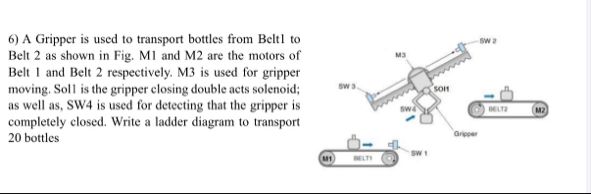

# Solution to Gripper Transport System Let's break down the problem into two steps as requested and provide a graphical representation (sequence diagram) and a sample ladder diagram to control the process of transporting **20 bottles**. --- ## **Step 1: Sequence of Operations (Graph/Flowchart)** Let's describe the sequence: 1. **Start Belt 1 (M1):** Bottle arrives at position (detected by SW1). 2. **Gripper Moves to Belt 1 (M3):** Gripper moves to pick position. 3. **Gripper Closes (SOL1):** Solenoid is energized to close gripper (SW4 confirms closed). 4. **Gripper Moves to Belt 2 (M3):** Gripper moves to place position. 5. **Gripper Opens (SOL1 OFF):** Bottle is released on Belt 2. 6. **Increment Counter:** Count one bottle. 7. **Repeat Until 20 Bottles Transferred.** ### **Graphical Sequence Diagram** ```plaintext [Belt 1] ---[SW1]--> [Gripper Moves to Belt 1] ---[M3]---> [Gripper Closes] ---[SOL1]--[SW4]--> [Gripper Moves to Belt 2] ---[M3]--> [Gripper Opens] ---[SOL1 OFF]--> [Belt 2] ``` --- ## **Step 2: Ladder Diagram Example for 20 Bottles** ### **Inputs/Outputs** - **Inputs:** - SW1: Bottle at pick-up (Belt 1) - SW2: Gripper at Belt 2 - SW4: Gripper fully closed - **Outputs:** - M1: Motor for Belt 1 - M2: Motor for Belt 2 - M3: Motor for Gripper movement - SOL1: Gripper close solenoid ### **Ladder Diagram Steps** #### **Rung 1: Detect Bottle and Start Pick Sequence** ``` |----[SW1]----[Counter < 20]----(Set Pick_Seq)----| ``` #### **Rung 2: Move Gripper to Belt 1 and Close Gripper** ``` |----[Pick_Seq]----[M3]----[SOL1]----(Set Close_Seq)----| ``` #### **Rung 3: Detect Gripper Closed (SW4) and Move to Belt 2** ``` |----[Close_Seq]----[SW4]----(Reset SOL1)----[M3]---[Set Place_Seq]----| ``` #### **Rung 4: Open Gripper at Belt 2, Increment Counter** ``` |----[Place_Seq]----[SW2]----(Reset M3)----(Increment Counter)----(Reset Place_Seq and Pick_Seq)----| ``` --- ### **Example (for 2 Bottles):** 1. **Bottle 1:** - SW1 = 1 → Pick_Seq set, M3 and SOL1 activate. - SW4 = 1 → SOL1 off, M3 moves to Belt 2, Place_Seq set. - SW2 = 1 → M3 off, Counter = 1. 2. **Bottle 2:** - Repeat above sequence, Counter = 2. --- ## **Final Answer** - **Graph:** Sequence diagram is given above. - **Ladder Diagram:** See the ladder rungs above. - **20 Bottles:** The system will repeat the sequence until the counter reaches 20, then stop the operation. --- **Note:** For implementation in a real PLC, you will use dedicated timer/counter and set/reset instructions as per your PLC brand's syntax. --- **Summary Table:** | Step | Input | Output | Action | |-----------------|--------------|---------------|----------------------------------| | Detect Bottle | SW1 | Pick_Seq | Start sequence | | Move/Grip | Pick_Seq | M3, SOL1 | Move gripper, close, confirm SW4 | | Place Bottle | SW4, SW2 | M3, Counter | Move to Belt 2, open, count | | Repeat | Counter < 20 | | Repeat until 20 bottles | --- If you need the full PLC code in a specific syntax (Siemens, Allen Bradley, etc.), let me know!
