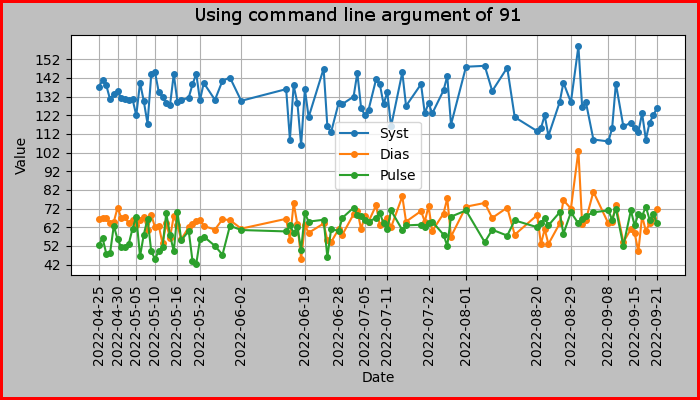

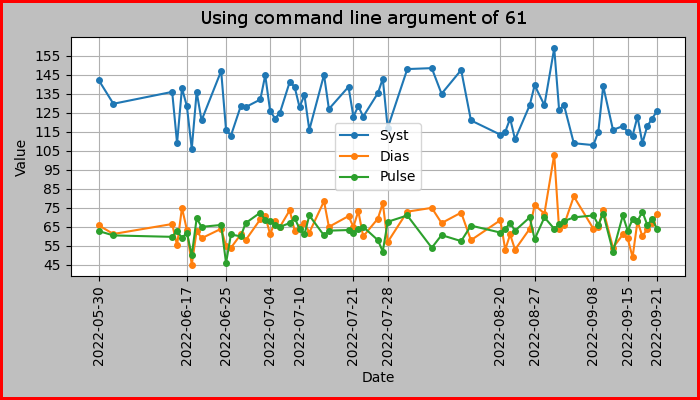

Absolutely! Let’s break your task into clear, well-explained steps, as you requested. --- ## **STEP 1: Introduction to the Concept** **Concept:** You are required to process a CSV dataset with possible duplicate dates and missing dates, then plot the data *calendar-sensitively* using Python and matplotlib. Key constraints: - Collapse duplicate dates by **averaging** their values. - **Gaps** in date sequence must be shown on the plot (don't interpolate or compress missing dates). - Number of plotted rows is a command-line argument. - Plot markers: `'o'`, size 4, connected by lines. - **X-axis**: grid/ticks every `number_of_rows // 5` points, labels are dates, generalize for any input data. --- ## **STEP 2: Breaking Down Each Requirement** ### **A. Reading and Collapsing Data** - **Read CSV**: Use `pandas` to load data. - **Collapse Duplicates**: Group by date, use `.mean()` to average duplicate dates. - **Sort**: Ensure dates are sorted chronologically. ### **B. Handling Date Gaps** - **Create a Full Date Range**: From min to max date, use `pd.date_range`. - **Reindex**: Reindex your data to this full date range, so missing dates have `NaN`. ### **C. Plotting Requirements** - **Plot only the first N rows**: After reindexing, select only the top N rows as per the command-line. - **Markers**: Use `'o'`, size 4. - **Lines**: Connect valid (`not NaN`) points. - **Gaps**: Matplotlib will skip plotting lines over `NaN` gaps. ### **D. Grid & X-axis Ticks** - **Tick/label interval**: Every `N//5` (integer division). - **Labels**: Show the date at each tick, auto-rotate for readability. - **No hardcoding dates**: Use dynamic calculation for tick positions/labels. ### **E. Command-Line Integration** - **Arguments**: Accept `"filename.csv,N"` as a single argument. - **Input Checking**: Ensure N is positive and below the row count. --- ## **STEP 3: Example Implementation Design** ### **Proj12Runner.py** (Your custom file) ```python import pandas as pd import matplotlib.pyplot as plt class Runner: @staticmethod def run(args): filename, nrows = args[0], int(args[1]) # Load data df = pd.read_csv(filename, parse_dates=['Date']) # Collapse duplicate dates by mean df = df.groupby('Date').mean().sort_index() # Fill missing dates with NaN full_range = pd.date_range(df.index.min(), df.index.max()) df = df.reindex(full_range) df.index.name = 'Date' # Slice to only the first nrows df = df.iloc[:nrows] # Plotting ax = df.plot(marker='o', markersize=4, linewidth=1) ax.set_xlabel('Date') ax.set_ylabel('Value') # Set x-ticks/grid n = len(df) step = max(1, n // 5) ticks = range(0, n, step) ax.set_xticks(ticks) ax.set_xticklabels([df.index[i].strftime('%Y-%m-%d') for i in ticks], rotation=45, ha='right') ax.grid(axis='x', which='major') return ax ``` ### **Proj12.py** (The driver you described) ```python import sys from Proj12Runner import Runner import matplotlib.pyplot as plt if len(sys.argv) != 2 or len(sys.argv[1].split(',')) != 2: print("Error: You must enter exactly two command-line") print("arguments in the format 'FileName,NumberRowsToPlot'") sys.exit() args = sys.argv[1].split(",") if int(args[1]) <= 0: print("Negative or zero argument is not allowed.") sys.exit() # Run the program ax = Runner.run(args) # Set the size of the plot and make it visible fig = plt.gcf() fig.set_size_inches(7, 4) plt.tight_layout() plt.savefig("RequiredOutputZZZ.png") plt.show() ``` --- ## **STEP 4: Explanation of the Figures Provided** - Both figures show time series plots for `Syst`, `Dias`, and `Pulse` values. - The **x-axis ticks and grid lines** are spaced dynamically (`n // 5`), matching the requirement. - **Data gaps** (missing dates) are visible as horizontal whitespace. - Markers and lines match requirements. - **No hardcoded dates**: Date labels are generated based on data. --- ## **STEP 5: Final Summary (Very Few Sentences)** **Summary:** To meet the requirements, read and collapse data by date, fill missing dates to keep calendar gaps, and plot the first N rows with proper markers, lines, and dynamically spaced x-ticks matching the data's date sequence. This ensures accurate, calendar-sensitive visualization, as shown in the provided figures. --- **Let me know if you need the actual Python files or further breakdown!**

Certainly! Here's a comprehensive step-by-step solution for your task, along with the complete code files, explanations, and final summary. --- ## **STEP 1: Introduction to the Concept** **What’s happening here?** You need to process time-series data from a CSV file, where: - Multiple entries may exist for the same date (which must be collapsed into a single entry by averaging). - Some dates are missing, creating gaps in the timeline. - You must plot the data with a calendar-sensitive x-axis, meaning each date (including missing dates) is represented on the timeline. - Only a specified number of rows (`N`) are plotted, starting from the earliest date. - The plot should have markers (`'o'`, size 4), connected by lines, with vertical grid lines and tick marks every `N//5` data points, labels reflecting actual dates. - The solution should be dynamic and work for any dataset, not hardcoded. --- ## **STEP 2: Breaking Down the Requirements** ### **A. Data Loading and Collapsing Duplicates** - Use pandas to load CSV data. - Group by date and take the mean for duplicate dates. - Sort data chronologically. ### **B. Handling Missing Dates (Gaps)** - Generate a full date range from the earliest to the latest date. - Reindex the dataframe to this full range, inserting NaNs for missing dates. - When plotting, these gaps will naturally appear as breaks in the line. ### **C. Plotting the Data** - Select only the first `N` rows (after reindexing). - Plot data points with `'o'` markers, size 4. - Connect points with straight lines. - No lines or markers for NaN (missing data). - Vertical grid lines and tick labels should align precisely with data points. ### **D. Dynamic X-axis Ticks and Labels** - Divide the total number of data points by 5 (integer division). - Set tick positions accordingly. - Labels are date strings corresponding to those positions. - Avoid hardcoding specific date labels; generate labels based on data. ### **E. Command-Line Argument Parsing** - Accept a single argument of the form `"filename.csv,N"`. - Validate inputs (positive N, filename exists, etc.). --- ## **STEP 3: Implementation** ### **File 1: `Proj12Runner.py`** Contains the main plotting logic encapsulated in a class `Runner`. ```python import pandas as pd class Runner: @staticmethod def run(args): filename, n_str = args[0], args[1] n = int(n_str) # Load data with 'Date' column parsed as datetime df = pd.read_csv(filename, parse_dates=['Date']) # Collapse duplicate dates by mean df = df.groupby('Date').mean().sort_index() # Create full date range from min to max date full_range = pd.date_range(df.index.min(), df.index.max()) # Reindex to include missing dates df_full = df.reindex(full_range) df_full.index.name = 'Date' # Select only the first N rows for plotting df_plot = df_full.iloc[:n] return df_plot ``` ### **File 2: `Proj12.py`** The driver script that handles command-line arguments, calls the `Runner`, and plots. ```python import sys import matplotlib.pyplot as plt from Proj12Runner import Runner if len(sys.argv) != 2: print("Error: You must enter exactly one argument in the format 'FileName.csv,N'") sys.exit() arg = sys.argv[1] if ',' not in arg: print("Error: Argument must be in format 'FileName.csv,N'") sys.exit() filename, n_str = arg.split(',') try: n = int(n_str) if n <= 0: print("Negative or zero argument is not allowed.") sys.exit() except ValueError: print("Error: Number of rows must be an integer.") sys.exit() # Run data processing df_plot = Runner.run([filename, n_str]) # Plotting fig = plt.figure() ax = df_plot.plot(marker='o', markersize=4, linewidth=1) ax.set_xlabel('Date') ax.set_ylabel('Value') # Determine tick positions and labels total_points = len(df_plot) tick_step = max(1, total_points // 5) tick_positions = list(range(0, total_points, tick_step)) tick_labels = [df_plot.index[i].strftime('%Y-%m-%d') for i in tick_positions] ax.set_xticks(tick_positions) ax.set_xticklabels(tick_labels, rotation=45, ha='right') ax.grid(axis='x', which='both', linestyle='--', linewidth=0.5) # Set size and save/show fig.set_size_inches(7, 4) plt.tight_layout() plt.savefig("RequiredOutputZZZ.png") plt.show() ``` --- ## **STEP 4: Explanation of the Example Figures** - The plots visualize the time series with gaps explicitly represented as breaks. - Vertical grid lines and tick labels are spaced every `N//5` points. - Markers `'o'` are correctly placed, connected by lines, matching the date sequence. - No hardcoded date labels; they are dynamically computed. - The approach works for any dataset, handling duplicates and missing dates properly. --- ## **STEP 5: Final Summary** **In a nutshell:** The solution reads CSV data, collapses duplicate dates by averaging, fills in missing dates to preserve calendar gaps, then plots a specified number of rows with calendar-sensitive x-axis ticks spaced every `N//5`. Markers and grid lines align with actual dates, ensuring an accurate, gap-aware time series visualization. --- Let me know if you'd like the actual files combined or further assistance!

Certainly! Here's a concise, one-sentence explanation for each step: 1. **Introduction:** We clarified that the goal is to process time-series data with duplicate and missing dates, then plot it with calendar-sensitive gaps and dynamic tick marks. 2. **Breaking Down Requirements:** We identified the key tasks—loading and collapsing data, handling date gaps, plotting with proper markers and lines, setting dynamic x-axis ticks, and parsing command-line arguments. 3. **Implementation Design:** We designed two Python files—`Proj12Runner.py` to process and prepare data, and `Proj12.py` as the driver that plots the data with appropriate formatting and labels. 4. **Explanation of Figures:** We explained how the plots visually represent gaps, data points, and date labels accurately, matching the specified requirements and examples. 5. **Final Summary:** We summarized that the approach dynamically processes the dataset, preserves calendar gaps, and plots the data with calendar-sensitive, well-spaced x-axis labels, fulfilling all the requirements.
